LT1132ACN#PBF - Analog Devices

Description: Advanced Low Power 5V RS232 Drivers/Receivers with Small Capacitors (Includes LT1130 thru LT1141)

Download LT1132ACN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

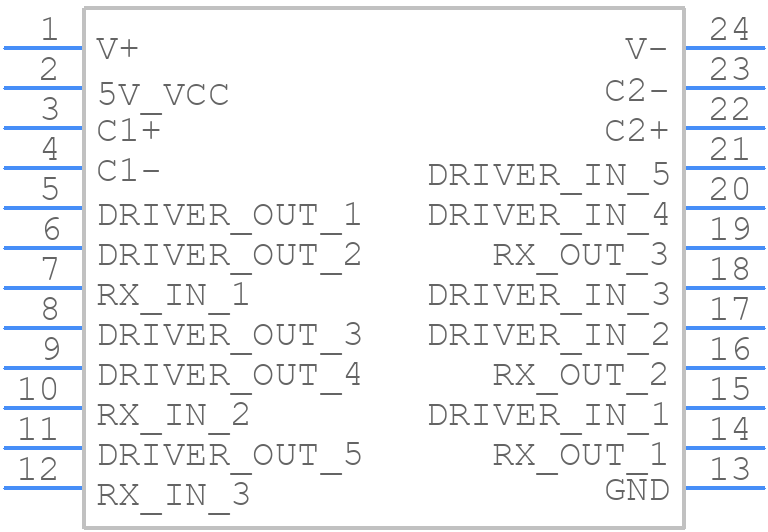

LT1132ACN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

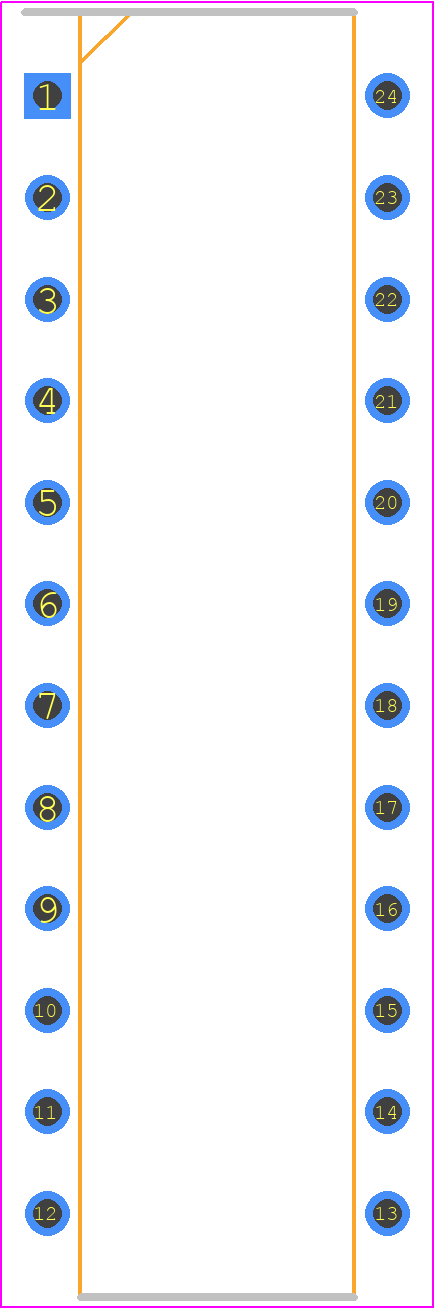

LT1132ACN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 24-Lead PDIP (Narrow 0.300) (LTC DWG # 05-08-1510)
click to zoom
3D Models
LT1132ACN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N Package 24-Lead PDIP (Narrow 0.300) (LTC DWG # 05-08-1510)
click to zoom

LT1132ACN#PBF Details

  • Manufacturer Part Number:

    LT1132ACN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1510 (N24)

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    5

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.62 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    600 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    3.937 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1300 ns

  • Width:

    7.62 mm

LT1132ACN#PBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LT1132ACN#PBF involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to avoid routing digital signals near the device.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the input and output capacitors are of high quality and have low equivalent series resistance (ESR). Additionally, the device should be operated within its specified input and output voltage ranges.
  • The maximum power dissipation of the LT1132ACN#PBF is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at an ambient temperature of 25°C. However, this value can be derated for higher ambient temperatures.
  • The LT1132ACN#PBF is rated for operation up to 125°C, but its performance and reliability may be affected at high temperatures. It's essential to consult the datasheet and to perform thorough testing and validation to ensure the device meets the required specifications in the target application.
  • To troubleshoot issues with the LT1132ACN#PBF, it's essential to follow a systematic approach, including checking the input and output voltages, verifying the compensation network, and ensuring that the device is operated within its specified parameters. Additionally, it may be helpful to consult the datasheet, application notes, and online resources for troubleshooting guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1132ACN#PBF Overview

Use the download button to access the LT1132ACN#PBF schematic symbol, PCB footprint, and 3D model.
