LT1139ACN#PBF - Analog Devices

LT1139ACN#PBF Details

• Manufacturer Part Number:

  LT1139ACN#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

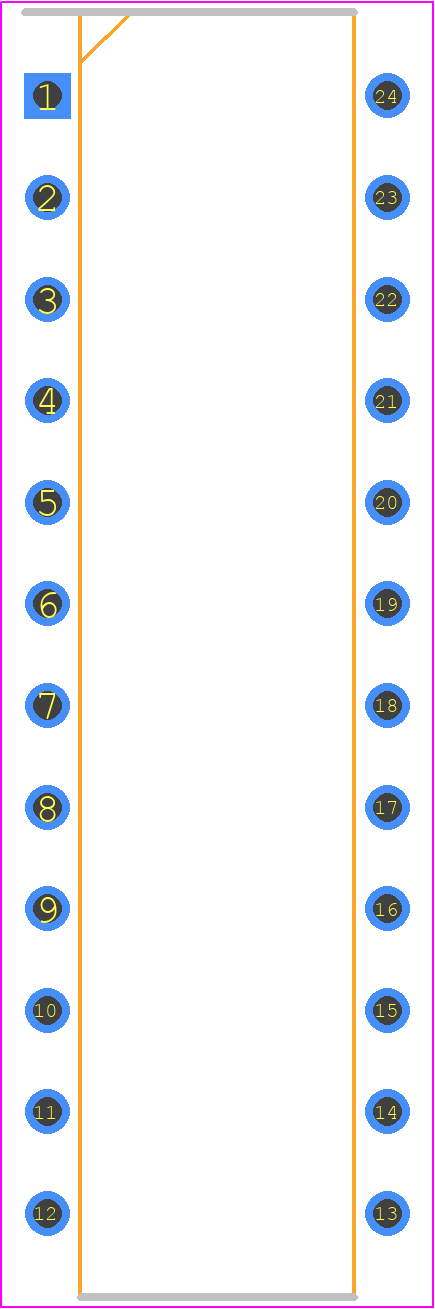

• Package Description:

  0.300 INCH, PLASTIC, DIP-24

• Pin Count:

  24

• Manufacturer Package Code:

  05-08-1510 (N24)

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Additional Feature:

  EXTERNAL CHARGE PUMP

• Differential Output:

  NO

• Driver Number of Bits:

  4

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232

• JESD-30 Code:

  R-PDIP-T24

• JESD-609 Code:

  e3

• Length:

  31.62 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP24,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receive Delay-Max:

  600 ns

• Receiver Number of Bits:

  4

• Seated Height-Max:

  3.937 mm

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  1300 ns

• Width:

  7.62 mm
