LT1158CN#PBF - Analog Devices

Description: Gate Drivers HalfBridge N-Ch Pwr MOSFET Drvr.

Download LT1158CN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

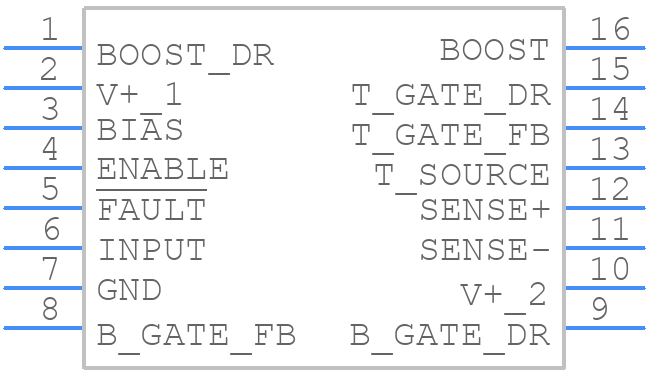

LT1158CN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1158CN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Lead PDIP (Narrow 0.300)
click to zoom
3D Models
LT1158CN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 16-Lead PDIP (Narrow 0.300)
click to zoom

LT1158CN#PBF Details

  • Manufacturer Part Number:

    LT1158CN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1510 (N16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.558 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.81 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.55 µs

  • Width:

    7.62 mm

LT1158CN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1158CN involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
  • The LT1158CN can operate in ambient temperatures up to 70°C. However, the device's junction temperature should not exceed 150°C. The maximum ambient temperature may be lower depending on the specific application and the device's power dissipation.
  • Yes, the LT1158CN is suitable for high-reliability and automotive applications. It is qualified to the AEC-Q100 standard and has a wide operating temperature range, making it suitable for use in harsh environments.
  • To troubleshoot issues with the LT1158CN, start by checking the input and output voltages, and the device's operating conditions. Verify that the input voltage is within the recommended range, and that the output voltage is within the expected range. Check for any signs of overheating, and ensure that the device is properly soldered and mounted. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1158CN#PBF Overview

Use the download button to access the LT1158CN#PBF schematic symbol, PCB footprint, and 3D model.
