LT1158IN#PBF - Analog Devices

Description: Gate Drivers HalfBridge N-Ch Pwr MOSFET Drvr.

Download LT1158IN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

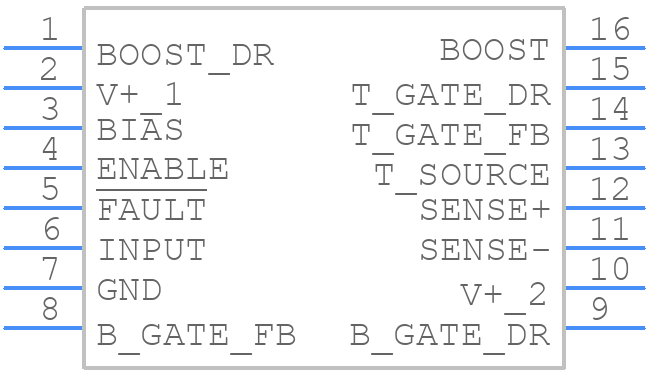

LT1158IN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1158IN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Lead PDIP (Narrow 0.300)
click to zoom
3D Models
LT1158IN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 16-Lead PDIP (Narrow 0.300)
click to zoom

LT1158IN#PBF Details

  • Manufacturer Part Number:

    LT1158IN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1510 (N16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.558 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.81 mm

  • Supply Current-Max:

    18 mA

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.55 µs

  • Width:

    7.62 mm

LT1158IN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1158IN involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, avoid using long input and output traces, and keep the device away from noise sources.
  • The LT1158IN can operate in ambient temperatures up to 125°C, but the device's junction temperature should not exceed 150°C. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
  • Yes, the LT1158IN is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a qualified process. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT1158IN, start by checking the input and output voltages, and ensure that the device is properly powered. Verify that the input and output capacitors are of the correct value and type, and check for any signs of overheating. Use an oscilloscope to check for noise or oscillations on the input and output lines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1158IN#PBF Overview

Use the download button to access the LT1158IN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT115, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
