LT1167ACS8#PBF - Analog Devices

Description: LT1167ACS8#PBF, Instrumentation Amplifier, 0.04mV Offset, 90dB CMRR, 8-Pin SOIC

Download LT1167ACS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

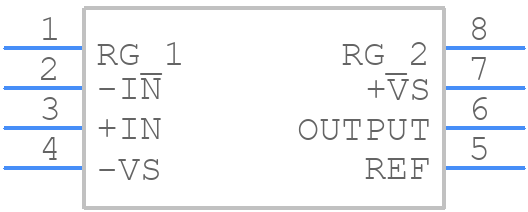

Symbol
LT1167ACS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1167ACS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LT1167ACS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package
click to zoom

LT1167ACS8#PBF Details

  • Manufacturer Part Number:

    LT1167ACS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.00045 µA

  • Bandwidth (3dB)-Nom:

    1 MHz

  • Common-mode Reject Ratio-Min:

    88 dB

  • Input Offset Current-Max (IIO):

    0.0004 µA

  • Input Offset Voltage-Max:

    60 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.006%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Nom:

    1.2 V/us

  • Supply Current-Max:

    1.5 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    10000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    10

  • Width:

    3.9 mm

LT1167ACS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1167ACS8 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output capacitor to minimize ringing.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor value and a low-ESR capacitor to minimize ringing. Also, avoid using long input and output traces, and keep the device away from noise sources.
  • The maximum ambient temperature range for the LT1167ACS8 is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • Yes, the LT1167ACS8 is suitable for high-reliability and aerospace applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is properly derated for the specific application. Additionally, it's recommended to consult with Analog Devices Inc. for specific guidance on using the LT1167ACS8 in high-reliability or aerospace applications.
  • To troubleshoot issues with the LT1167ACS8, start by checking the input and output voltages, and ensuring that the device is properly powered. Verify that the input and output capacitors are properly connected and meet the recommended values. Also, check for any signs of overheating, and ensure that the device is properly cooled. If the issue persists, consult the datasheet and application notes, or contact Analog Devices Inc. for further assistance.
