LT1168ACS8#PBF - Analog Devices

Description: Instrumentation Amplifiers L Pwr, 1x Res Gain Progmable, Prec Instr

Download LT1168ACS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

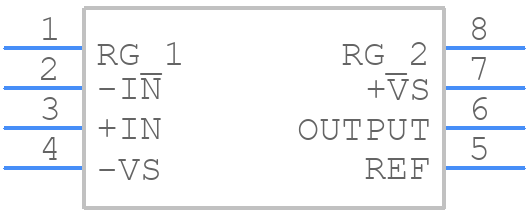

Symbol
LT1168ACS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1168ACS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline(Narrow .150 Inch)
click to zoom
3D Models
LT1168ACS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline(Narrow .150 Inch)
click to zoom

LT1168ACS8#PBF Details

  • Manufacturer Part Number:

    LT1168ACS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.00035 µA

  • Bandwidth (3dB)-Nom:

    0.4 MHz

  • Common-mode Reject Ratio-Min:

    88 dB

  • Input Offset Current-Max (IIO):

    0.0004 µA

  • Input Offset Voltage-Max:

    60 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Non-linearity-Max:

    0.006%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Slew Rate-Nom:

    0.48 V/us

  • Supply Current-Max:

    0.615 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    10000

  • Voltage Gain-Min:

    1

  • Voltage Gain-Nom:

    10

  • Width:

    3.899 mm

LT1168ACS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1168ACS8 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, avoid using long input traces and keep the device away from noise sources.
  • The maximum power dissipation of the LT1168ACS8 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated at higher temperatures.
  • The LT1168ACS8 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking to maintain reliable operation.
  • To troubleshoot issues with the LT1168ACS8, start by checking the input and output voltages, and ensuring that the device is properly powered. Check for any signs of overheating, and verify that the PCB layout and component values match the recommended design. If the issue persists, consult the datasheet and application notes for further guidance.
