LT1175IS8-5 - Analog Devices

Description: 500mA Negative Low Dropout Micropower Regulator

Download LT1175IS8-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

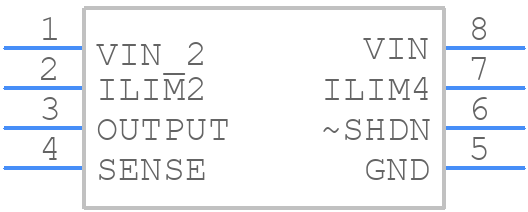

LT1175IS8-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1175IS8-5 - Analog Devices PCB footprint - Other - Other - SOIC127P600X175-8N
click to zoom
3D Models
LT1175IS8-5 - Analog Devices - 3D model - Other - SOIC127P600X175-8N
click to zoom

LT1175IS8-5 Details

  • Manufacturer Part Number:

    LT1175IS8-5

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.7 V

  • Dropout Voltage1-Nom:

    0.5 V

  • Input Voltage-Max:

    20 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    4.9 mm

  • Load Regulation-Max:

    0.0175%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5.075 V

  • Output Voltage1-Min:

    4.93 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    1.4%

  • Width:

    3.9 mm

LT1175IS8-5 Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT1175IS8-5 is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
  • To ensure stability, it's essential to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Additionally, the output capacitor should be placed as close to the output pin as possible.
  • The maximum output current that the LT1175IS8-5 can deliver is 5A, but it's recommended to keep it below 3A for optimal performance and reliability.
  • To reduce noise and ripple, it's recommended to use a low-ESR output capacitor, and to add a 10nF to 100nF ceramic capacitor in parallel with the output capacitor. Additionally, keeping the input and output capacitors close to the device can help reduce noise and ripple.
  • The thermal shutdown temperature of the LT1175IS8-5 is typically around 150°C, but it can vary depending on the specific device and operating conditions.
