LT1180ACN#PBF - Analog Devices

Description: LT1180ACN#PBF, Line Transceiver, EIA-232, RS-232 2-TX 2-RX 2-TRX, 5 V, 18-Pin PDIP, PDIP N

Download LT1180ACN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

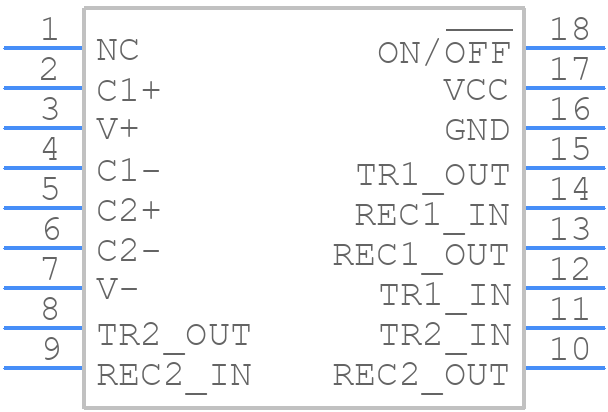

LT1180ACN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

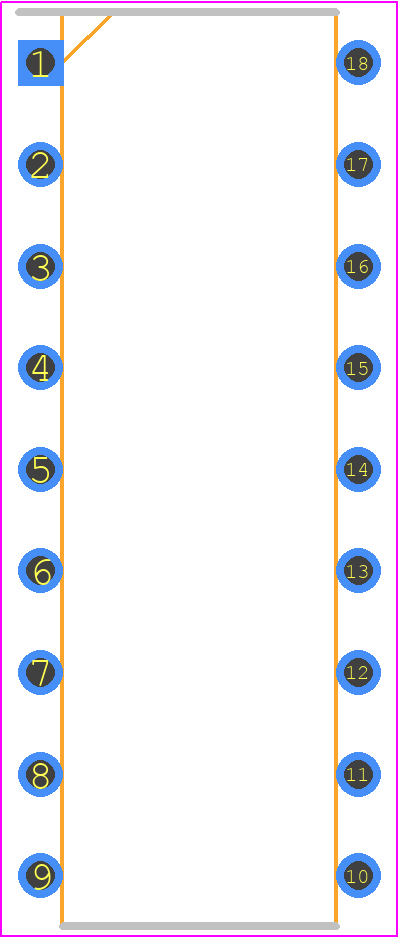

LT1180ACN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package
click to zoom
3D Models
LT1180ACN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - N Package
click to zoom

LT1180ACN#PBF Details

  • Manufacturer Part Number:

    LT1180ACN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    05-08-1510 (N18)

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e3

  • Length:

    22.86 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    600 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    3.937 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1300 ns

  • Width:

    7.62 mm

LT1180ACN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1180ACN#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the output voltage sense pins to reduce noise.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, use a compensation capacitor (Cc) between pins 5 and 6, and adjust its value based on the output capacitor (Co) and ESR. A general rule of thumb is to start with Cc = Co / 10 and adjust as needed.
  • The LT1180ACN#PBF can deliver up to 3A of output current. In overload conditions, the device has built-in overcurrent protection that limits the output current to prevent damage. However, it's still important to ensure the output capacitor and traces can handle the maximum output current to prevent overheating or damage.
  • The LT1180ACN#PBF has built-in input voltage transient protection, which can withstand input voltage spikes up to 60V for 100ms. However, it's still recommended to use input voltage filtering and transient protection devices, such as TVS diodes, to ensure the device operates within its specified input voltage range.
  • The LT1180ACN#PBF has a thermal derating of 12mW/°C above 25°C. This means that as the device temperature increases, its power dissipation capability decreases. To ensure optimal performance, it's essential to provide adequate heat sinking and airflow to keep the device temperature within its specified operating range.
