LT1180ACSW#TRPBF - Analog Devices

Description: Low Power 5V RS232 Dual Driver/Receiver with 0.1µF Capacitors 0°C ~ 70°C

Download LT1180ACSW#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

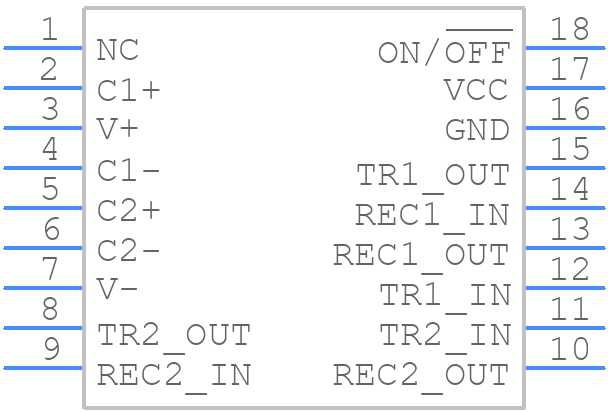

LT1180ACSW#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1180ACSW#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SW Package
click to zoom
3D Models
LT1180ACSW#TRPBF - Analog Devices - 3D model - Small Outline Packages - SW Package
click to zoom

LT1180ACSW#TRPBF Details

  • Manufacturer Part Number:

    LT1180ACSW#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, SOP-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    05-08-1620 (SW18)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    EXTERNAL CHARGE PUMP

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e3

  • Length:

    11.557 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    600 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    2.642 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    1300 ns

  • Width:

    7.493 mm

LT1180ACSW#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1180 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g. 10Ω) in series with the output capacitor can help to dampen oscillations.
  • The maximum input voltage that the LT1180 can handle is 15V, but it's recommended to keep the input voltage below 12V to ensure reliable operation and to prevent damage to the device.
  • The LT1180 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the LT1180, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or ringing on the output. Also, check the PCB layout and component values to ensure they match the recommended values. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1180ACSW#TRPBF Overview

Use the download button to access the LT1180ACSW#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT118, or try a keyword search, such as Line Driver or Receivers
