LT1210XFE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1210XFE#PBF - OP-AMP, 35MHZ, 900V/US, TSSOP-16

Download LT1210XFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

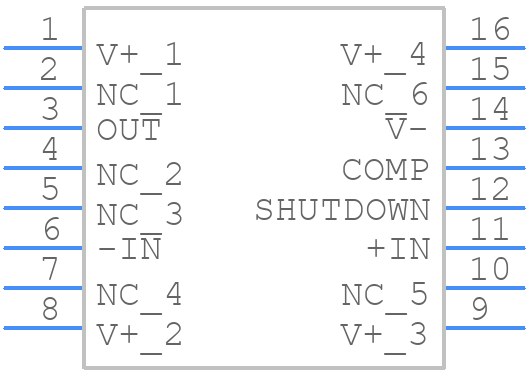

Symbol
LT1210XFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1210XFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT1210XFE#PBF-1
click to zoom
3D Models
LT1210XFE#PBF - Analog Devices - 3D model - Small Outline Packages - LT1210XFE#PBF-1
click to zoom

LT1210XFE#PBF Details

  • Manufacturer Part Number:

    LT1210XFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Common-mode Reject Ratio-Min:

    55 dB

  • Common-mode Reject Ratio-Nom:

    62 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    20000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    400 V/us

  • Slew Rate-Nom:

    900 V/us

  • Supply Current-Max:

    65 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    177.83

  • Wideband:

    YES

  • Width:

    4.4 mm

LT1210XFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1210 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability in high-gain configurations, it's essential to follow proper compensation techniques, such as adding a capacitor in parallel with the feedback resistor or using a series resistor-capacitor network in the feedback path. Additionally, selecting the correct compensation components and ensuring a low-ESR output capacitor can help maintain stability.
  • The maximum safe operating area (SOA) for the LT1210 is limited by the device's thermal and electrical constraints. The SOA is typically defined by the maximum output current, voltage, and power dissipation. It's essential to ensure that the device operates within the recommended SOA to prevent damage or degradation.
  • To protect the LT1210 from overvoltage and overcurrent conditions, consider adding overvoltage protection (OVP) circuits, such as a voltage clamp or a zener diode, to limit the input voltage. Additionally, using a current-limiting resistor or a fuse can help prevent overcurrent conditions.
  • A good thermal management strategy for the LT1210 involves using a heat sink with a thermal conductivity of at least 1°C/W, ensuring good airflow around the device, and keeping the device away from other heat sources. A thermal interface material (TIM) can also be used to improve heat transfer between the device and the heat sink.
