LT1210XFE#TRPBF - Analog Devices

Description: Operational Amplifiers - Op Amps 1.1A, 35MHz Current Feedback Amplifier

Download LT1210XFE#TRPBF Model

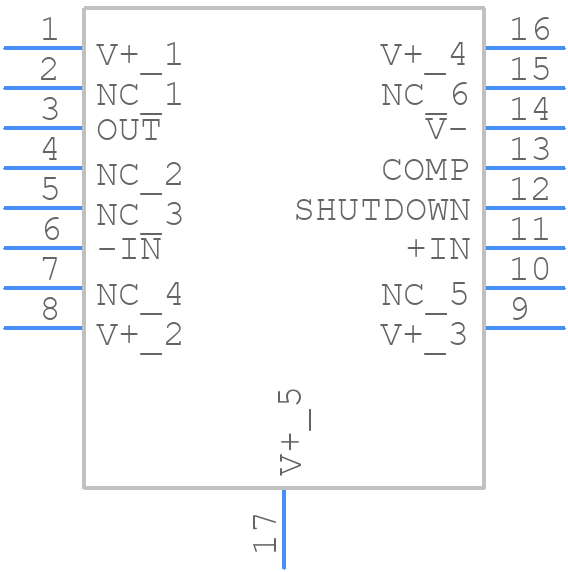

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1210XFE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 16-Lead Plastic TSSOP (4.4mm)_2020
click to zoom
3D Models
LT1210XFE#TRPBF - Analog Devices  - 3D model - Small Outline Packages - FE Package 16-Lead Plastic TSSOP (4.4mm)_2020
click to zoom

LT1210XFE#TRPBF Details

  • Manufacturer Part Number:

    LT1210XFE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BB)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Common-mode Reject Ratio-Min:

    55 dB

  • Common-mode Reject Ratio-Nom:

    62 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    20000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    400 V/us

  • Slew Rate-Nom:

    900 V/us

  • Supply Current-Max:

    65 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Min:

    177.83

  • Wideband:

    YES

  • Width:

    4.4 mm

LT1210XFE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1210 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer board with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 100nF, and avoid capacitive loads. Also, ensure that the input and output voltages are within the recommended operating range.
  • The maximum power dissipation of the LT1210 is dependent on the package and the ambient temperature. For the TRPBF package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
  • While the LT1210 can be used as a voltage regulator, it's not recommended due to its limited output current capability and lack of built-in overcurrent protection. Instead, consider using a dedicated voltage regulator IC that's designed for voltage regulation applications.
  • To protect the LT1210 from overvoltage and undervoltage conditions, consider adding external voltage protection circuits such as a voltage clamp or a crowbar circuit. Additionally, ensure that the input voltage is within the recommended operating range.
