LT1212CN#PBF - Analog Devices

Description: Precision Amplifiers 14MHz, 7V/ s, Single Supply Dual and Quad Precision Op Amps

Download LT1212CN#PBF Model

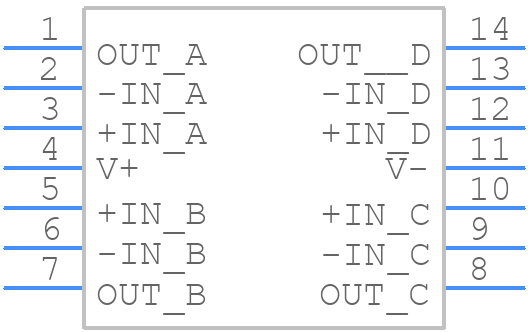

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

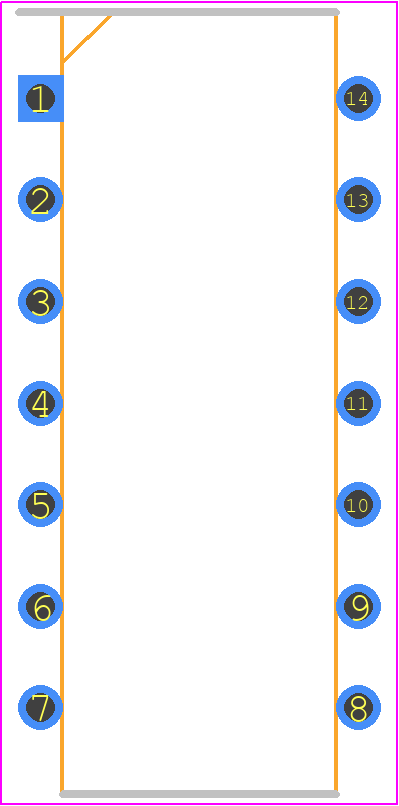

LT1212CN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N Package 14-Lead PDIP (Narrow .300 Inch)
click to zoom
3D Models
LT1212CN#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N Package 14-Lead PDIP (Narrow .300 Inch)
click to zoom

LT1212CN#PBF Details

  • Manufacturer Part Number:

    LT1212CN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1510 (N14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.125 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Common-mode Reject Ratio-Nom:

    101 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    650 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e3

  • Length:

    19.305 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.809 mm

  • Slew Rate-Min:

    5 V/us

  • Slew Rate-Nom:

    7 V/us

  • Supply Current-Max:

    11.6 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    14000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    7.62 mm

LT1212CN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1212CN involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output current. Additionally, avoid using long input traces and keep the input and output grounds separate.
  • The LT1212CN can operate in ambient temperatures up to 70°C. However, the device's junction temperature should not exceed 150°C. It's essential to ensure proper heat sinking and thermal management to prevent overheating.
  • Yes, the LT1212CN can be used in switching regulator designs. However, it's essential to ensure that the device is properly bypassed and that the input and output capacitors are properly sized for the switching frequency and output current.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any signs of resonance or coupling between the input and output traces. Ensure that the output capacitor is properly sized and has a low ESR. Also, check the input and output grounds for any signs of noise or voltage drops.
