LT1212IS#PBF - Analog Devices

Description: Standard (General Purpose) Amplifier 4 Circuit 16-SO

Download LT1212IS#PBF Model

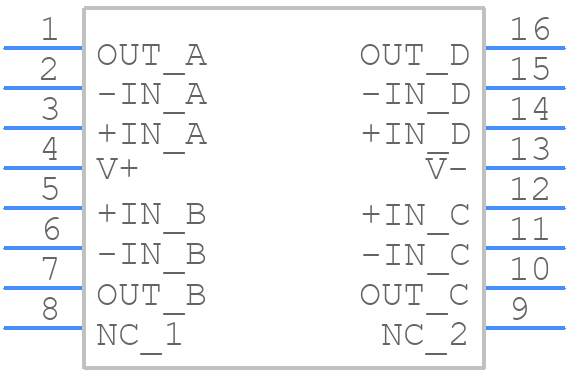

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1212IS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LT1212IS#PBF - Analog Devices  - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LT1212IS#PBF Details

  • Manufacturer Part Number:

    LT1212IS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.13 µA

  • Common-mode Reject Ratio-Min:

    84 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    700 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    5 V/us

  • Slew Rate-Nom:

    7 V/us

  • Supply Current-Max:

    12 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    14000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    NO

  • Width:

    3.9 mm

LT1212IS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1212IS#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10nF, and keep the feedback resistors within the recommended range. Also, avoid using long feedback traces and ensure that the device is properly decoupled.
  • The maximum power dissipation of the LT1212IS#PBF is dependent on the package and the ambient temperature. For the IS package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
  • The LT1212IS#PBF is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper heat sinking to maintain a safe junction temperature.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any potential issues, ensure that the compensation network is correct, and verify that the output capacitance is within the recommended range. Also, check for any noise or interference on the input or output lines, and ensure that the device is properly decoupled.
