LT1214CS#TRPBF - Analog Devices

Description: Op Amp Quad Precision Amplifier ±18V/36V 16-Pin SOIC N T/R

Download LT1214CS#TRPBF Model

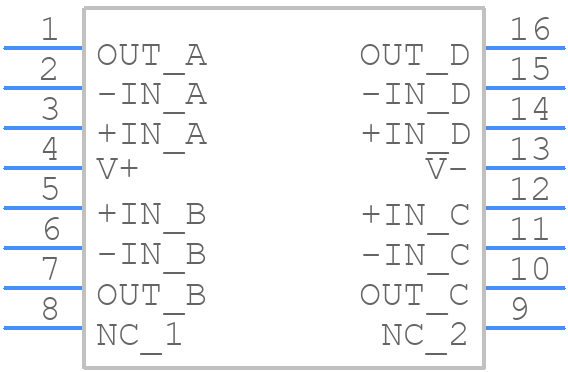

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1214CS#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LT1214CS#TRPBF - Analog Devices  - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LT1214CS#TRPBF Details

  • Manufacturer Part Number:

    LT1214CS#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.2 µA

  • Bias Current-Max (IIB) @25C:

    0.004 µA

  • Common-mode Reject Ratio-Min:

    85 dB

  • Common-mode Reject Ratio-Nom:

    105 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    650 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    10 V/us

  • Slew Rate-Nom:

    12 V/us

  • Supply Current-Max:

    5 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    28000

  • Voltage Gain-Min:

    1000000

  • Wideband:

    YES

  • Width:

    3.9 mm

LT1214CS#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1214CS#TRPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The output filter components (Rf, Cf) should be chosen based on the desired output impedance, ripple rejection, and noise performance. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements.
  • The maximum input voltage that can be applied to the LT1214CS#TRPBF is 15V, but it's recommended to keep the input voltage below 12V to ensure reliable operation and to prevent damage to the device.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended layout and component selection guidelines, and to use a compensation capacitor (Cc) as specified in the datasheet. Additionally, the input and output capacitors should be chosen to ensure that the device operates within its stable region.
  • The thermal derating curve for the LT1214CS#TRPBF can be found in the datasheet, and it shows the maximum power dissipation allowed at different ambient temperatures. It's essential to ensure that the device operates within its thermal limits to prevent overheating and damage.
