LT1236ACS8-5#PBF - Analog Devices

Description: Voltage References Prec Ref

Download LT1236ACS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

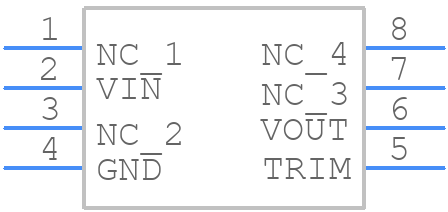

Symbol
LT1236ACS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1236ACS8-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT1236ACS8-5#PBF**
click to zoom
3D Models
LT1236ACS8-5#PBF - Analog Devices - 3D model - Small Outline Packages - LT1236ACS8-5#PBF**
click to zoom

LT1236ACS8-5#PBF Details

  • Manufacturer Part Number:

    LT1236ACS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    5.0025 V

  • Output Voltage-Min:

    4.9975 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    7.2 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Width:

    3.9 mm

LT1236ACS8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1236ACS8-5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output current. Additionally, avoid using long input traces and keep the input and output grounds separate.
  • The maximum ambient temperature range for the LT1236ACS8-5 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's essential to ensure proper heat sinking and thermal management in your design.
  • Yes, the LT1236ACS8-5 is suitable for high-reliability and aerospace applications. It is manufactured using a high-reliability process and is screened to ensure compliance with various industry standards, including MIL-PRF-38535.
  • To troubleshoot issues with the LT1236ACS8-5, start by checking the input voltage, output voltage, and output current. Verify that the device is properly powered and that the input and output capacitors are properly sized. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance.
