LT1236AILS8-5#PBF - Analog Devices

Description: Voltage References Precision, Low Noise, Low Profile Hermetic Voltage Reference

Download LT1236AILS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

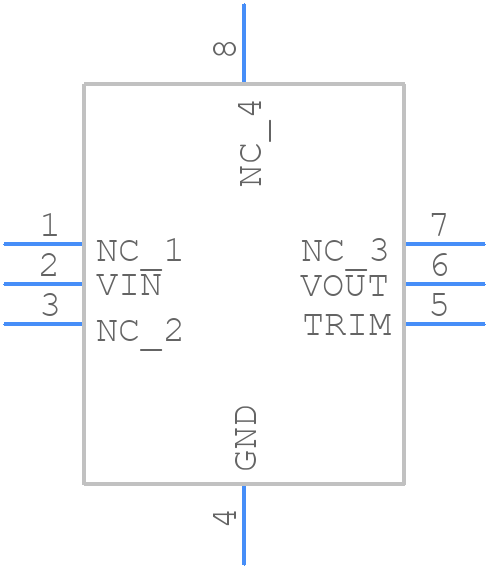

Symbol
LT1236AILS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1236AILS8-5#PBF - Analog Devices PCB footprint - Other - Other - LS8 Package8-Pin Leadless Chip Carrier(5mm × 5mm)
click to zoom
3D Models
LT1236AILS8-5#PBF - Analog Devices - 3D model - Other - LS8 Package8-Pin Leadless Chip Carrier(5mm × 5mm)
click to zoom

LT1236AILS8-5#PBF Details

  • Manufacturer Part Number:

    LT1236AILS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1852

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    SEATED HT-CALCULATED

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PQCC-N8

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.0025 V

  • Output Voltage-Min:

    4.9975 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC8,.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    7.2 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.05%

  • Width:

    5 mm

LT1236AILS8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1236 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the input. Additionally, avoid using long input traces and keep the input and output capacitors close to the device.
  • The maximum ambient temperature range for the LT1236 is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the LT1236 is suitable for high-reliability applications. It is manufactured using a proprietary BiCMOS process and is designed to meet the requirements of high-reliability applications. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
