LT1236BCN8-5#PBF - Analog Devices

Description: Series, Buried Zener Voltage Reference IC Fixed 5V V ±0.1% 10 mA 8-PDIP , 7.2V ~ 40V , 0°C ~ 70°C (TA)

Download LT1236BCN8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

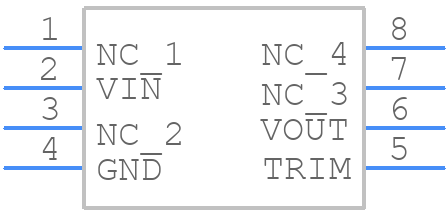

LT1236BCN8-5#PBF - Analog Devices - PCB symbol
