LT1336CS#PBF - Analog Devices

Description: MOSFET Driver 60V 1.5A Half-Bridge SO16 Linear Technology LT1336CS#PBF, Dual Half Bridge MOSFET Power Driver, 1.5A, 10 to 15 V, Non-Inverting, 16-Pin SOIC

Download LT1336CS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

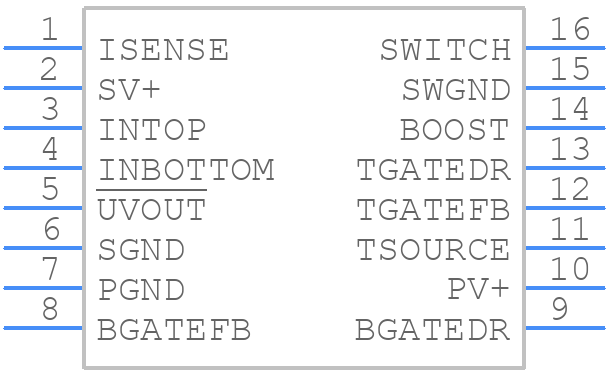

Symbol
LT1336CS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1336CS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom
3D Models
LT1336CS#PBF - Analog Devices - 3D model - Small Outline Packages - S Package 16-Lead Plastic Small Outline (Narrow .150 Inch)
click to zoom

LT1336CS#PBF Details

  • Manufacturer Part Number:

    LT1336CS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1610 (S16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.906 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    1.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    15 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.6 µs

  • Turn-on Time:

    0.5 µs

  • Width:

    3.899 mm

LT1336CS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1336CS#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the feedback resistors close to the device.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, check that the output capacitor is sufficient to filter out high-frequency noise, and that the feedback resistors are properly selected to ensure a stable gain margin.
  • The maximum input voltage for the LT1336CS#PBF is 15V, but it's recommended to operate within the specified input voltage range of 3.5V to 12V for optimal performance and reliability.
  • The LT1336CS#PBF is rated for operation up to 125°C, but it's recommended to derate the device's performance and ensure proper thermal management to prevent overheating and ensure reliability.
  • To troubleshoot issues with the LT1336CS#PBF, start by checking the PCB layout and component values against the recommended specifications. Use an oscilloscope to measure the output waveform and check for signs of oscillation or instability. Also, verify that the input voltage and current are within the specified ranges.
