LT1339CN#PBF - Analog Devices

Description: High Power Synchronous DC/DC Controller Linear Technology LT1339CN#PBF, DC-DC Controller, 65mA, 60 V, Current Mode, 150 kHz, 20-Pin, PDIP

Download LT1339CN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

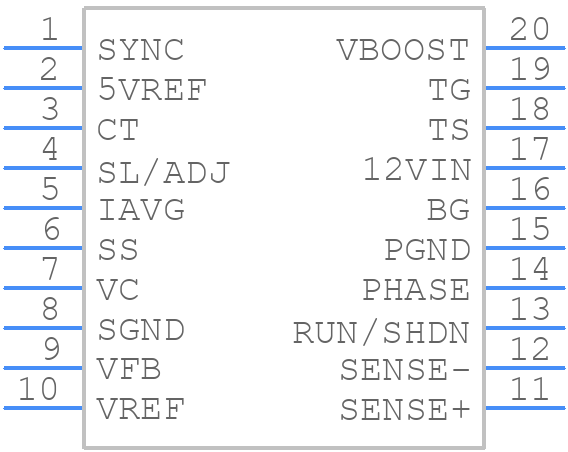

Symbol
LT1339CN#PBF - Analog Devices - PCB symbol
click to zoom

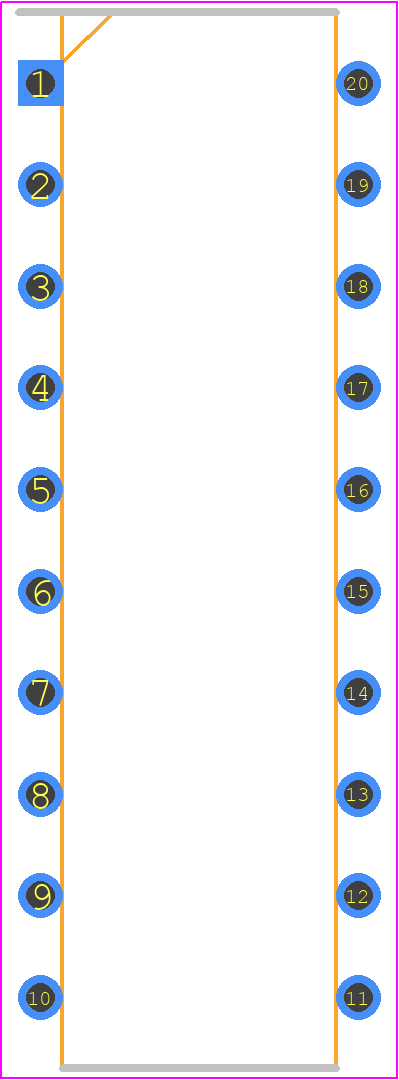

PCB Footprints
LT1339CN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - LT1339CN
click to zoom
3D Models
LT1339CN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - LT1339CN
click to zoom

LT1339CN#PBF Details

  • Manufacturer Part Number:

    LT1339CN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1510 (N20)

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    15 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDIP-T20

  • JESD-609 Code:

    e3

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Nom:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Supply Current-Max (Isup):

    20 mA

  • Surface Mount:

    NO

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LT1339CN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1339CN involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. Additionally, a small ceramic capacitor (e.g., 10nF) can be added between the VCC pin and ground to improve stability.
  • The maximum input voltage for the LT1339CN is 15V, but it's recommended to keep the input voltage below 12V to ensure reliable operation and to prevent damage to the device.
  • The LT1339CN is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
  • To protect the LT1339CN from input voltage transients and surges, add a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This will help to limit the input voltage to a safe level and prevent damage to the device.
