LT1389BCS8-4.096#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1389BCS8-4.096#PBF - Voltage Reference, Precision, Nanopower, Shunt - Fixed, LT1389 Series, 4.096V, NSOIC-8

Download LT1389BCS8-4.096#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

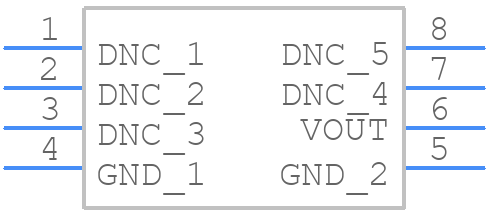

Symbol
LT1389BCS8-4.096#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1389BCS8-4.096#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LT1389BCS8-4.096#PBF - Analog Devices - 3D model - Small Outline Packages - S8-ren3
click to zoom

LT1389BCS8-4.096#PBF Details

  • Manufacturer Part Number:

    LT1389BCS8-4.096#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    4.09907 V

  • Output Voltage-Min:

    4.09293 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    50 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.9 mm

LT1389BCS8-4.096#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1389BCS8-4.096 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR output capacitor and to minimize the loop area of the output traces to reduce electromagnetic interference (EMI).
  • To ensure stability, it's essential to follow the recommended output capacitor values and types, as well as the input capacitor values. Additionally, the device should be operated within its specified input voltage range, and the output should not be overloaded. It's also recommended to add a small ceramic capacitor (e.g., 10nF) between the VIN pin and GND to filter out high-frequency noise.
  • The LT1389BCS8-4.096 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device does not exceed its maximum junction temperature (150°C) to prevent damage or malfunction.
  • Yes, the LT1389BCS8-4.096 is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process, and it's qualified to the AEC-Q100 standard for automotive applications. However, it's essential to follow the recommended operating conditions, and to ensure that the device is properly derated for the specific application.
  • The power dissipation of the LT1389BCS8-4.096 can be calculated using the following formula: Pd = (VIN - VOUT) x IOUT + VIN x IQ, where Pd is the power dissipation, VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, and IQ is the quiescent current. It's essential to ensure that the device does not exceed its maximum power dissipation rating (1.5W) to prevent overheating or damage.
