LT1461BIS8-3.3#PBF - Analog Devices

Description: Voltage References uP Prec L Drop Series V Ref Fam

Download LT1461BIS8-3.3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

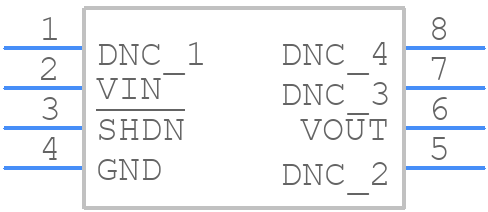

Symbol
LT1461BIS8-3.3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1461BIS8-3.3#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch) (Reference LTC DWG # 05-08-1610)
click to zoom
3D Models
LT1461BIS8-3.3#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch) (Reference LTC DWG # 05-08-1610)
click to zoom

LT1461BIS8-3.3#PBF Details

  • Manufacturer Part Number:

    LT1461BIS8-3.3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.30198 V

  • Output Voltage-Min:

    3.29802 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    3.8 V

  • Supply Voltage-Nom (Vsup):

    5.8 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    7 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Trim/Adjustable Output:

    NO

  • Width:

    3.9 mm

LT1461BIS8-3.3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1461BIS8-3.3 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended capacitor values and types, and to place them close to the device. Additionally, the output voltage should be decoupled with a 10uF ceramic capacitor, and the input voltage should be filtered with a 1uF ceramic capacitor.
  • The maximum ambient temperature range for the LT1461BIS8-3.3 is -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance.
  • Yes, the LT1461BIS8-3.3 is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow proper design and manufacturing practices to ensure the device's reliability in the application.
  • To troubleshoot issues with the LT1461BIS8-3.3 output voltage, first, verify that the input voltage is within the recommended range, and that the device is properly decoupled. Check for any signs of overheating, and ensure that the output voltage is not overloaded. If the issue persists, consult the datasheet and application notes for further guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1461BIS8-3.3#PBF Overview

Use the download button to access the LT1461BIS8-3.3#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT146, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
