LT1461DHS8-5#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1461DHS8-5#PBF - VOLTAGE REF, SERIES, 5V, NSOIC-8

Download LT1461DHS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

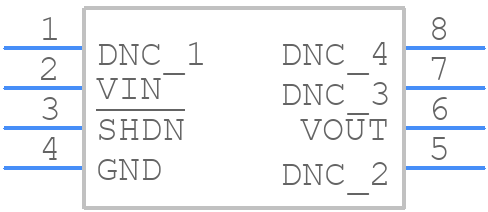

LT1461DHS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1461DHS8-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-8Lead Plastic Small Outline(narrow 0.150 inch)
click to zoom
3D Models
LT1461DHS8-5#PBF - Analog Devices - 3D model - Small Outline Packages - S8-8Lead Plastic Small Outline(narrow 0.150 inch)
click to zoom

LT1461DHS8-5#PBF Details

  • Manufacturer Part Number:

    LT1461DHS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.0075 V

  • Output Voltage-Min:

    4.9925 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    7.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    20 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.9 mm

LT1461DHS8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1461DHS8-5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended capacitor values and types, keep the output capacitor ESR low, and avoid capacitive loads. Also, ensure that the device is operated within its recommended operating conditions and that the input voltage is well-regulated.
  • The maximum allowed power dissipation for the LT1461DHS8-5 is 1.4W. Exceeding this limit can cause the device to overheat and potentially fail. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range.
  • The LT1461DHS8-5 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range.
  • To troubleshoot issues with the LT1461DHS8-5, start by checking the input voltage, output voltage, and output current. Verify that the device is properly connected and that the capacitors are of the correct type and value. Check for signs of overheating, and ensure that the device is operated within its recommended operating conditions.
