LT1511CSW#PBF - Analog Devices

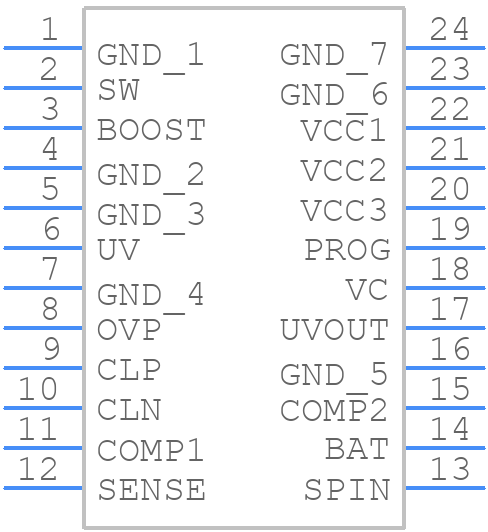

LT1511CSW#PBF Details

• Manufacturer Part Number:

  LT1511CSW#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

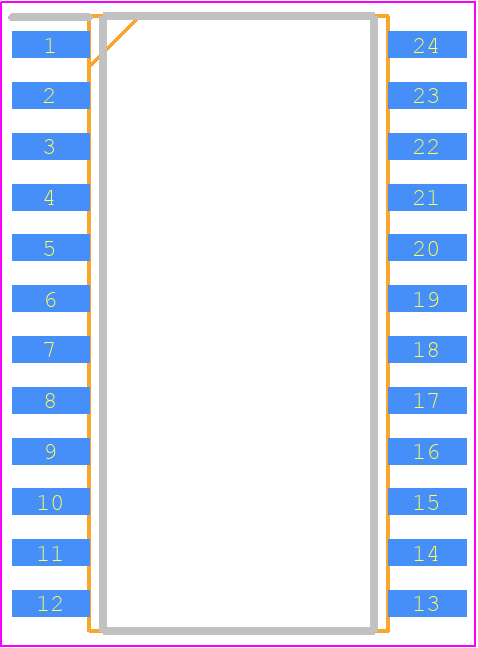

• Package Description:

  SOP-24

• Pin Count:

  24

• Manufacturer Package Code:

  05-08-1620 (SW24)

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  LINEAR BATTERY CHARGER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  28 V

• Input Voltage-Min:

  11 V

• Input Voltage-Nom:

  16 V

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  15.395 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  70 °C

• Output Current-Max:

  4 A

• Output Voltage-Nom:

  2.465 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.642 mm

• Supply Current-Max (Isup):

  7 mA

• Supply Voltage-Max (Vsup):

  28 V

• Supply Voltage-Nom (Vsup):

  16 V

• Surface Mount:

  YES

• Switcher Configuration:

  SINGLE

• Switching Frequency-Max:

  230 kHz

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Threshold Voltage-Nom:

  +7V

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.493 mm
