Part Image

LT1513-2CR#TRPBF - Analog Devices

Description: Switching Battery Charger Lead-Acid/Li-Ion/Li-Pol/NiCd/NiMH 2000mA 20V 8-Pin(7+Tab) DDPAK T/R

Download LT1513-2CR#TRPBF Model

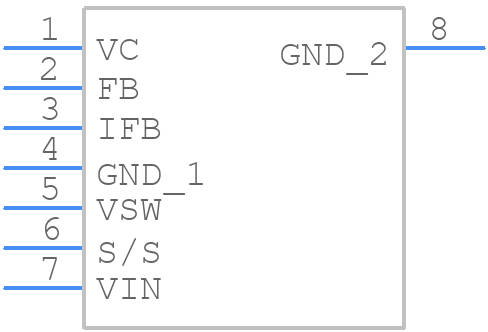

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

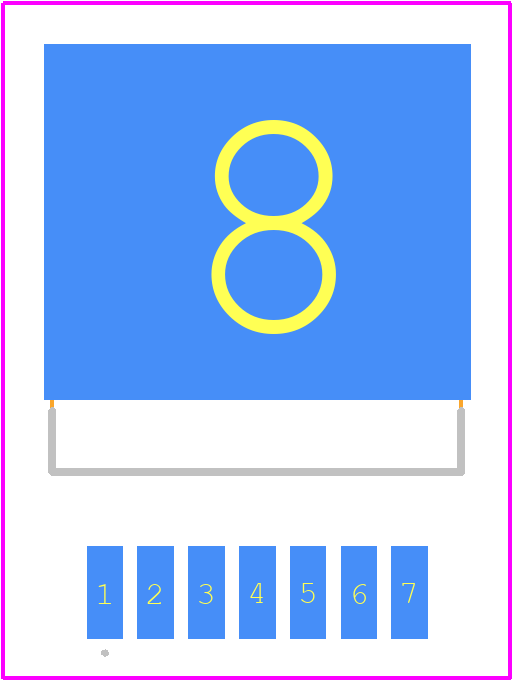

LT1513-2CR#TRPBF - Analog Devices PCB footprint - Other - Other - LT1513-2CR#TRPBF-3
click to zoom

LT1513-2CR#TRPBF Details

  • Manufacturer Part Number:

    LT1513-2CR#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, D2PAK-7

  • Pin Count:

    7

  • Manufacturer Package Code:

    05-08-1462

  • Reach Compliance Code:

    Not_compliant

  • Country Of Origin:

    Malaysia

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    BATTERY CHARGE CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PSSO-G7

  • JESD-609 Code:

    e3

  • Length:

    10.2235 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Output Current-Max:

    5.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.877 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    580 kHz

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    8.89 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1513-2CR#TRPBF Overview

Use the download button to access the LT1513-2CR#TRPBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LT151, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems that are used in appl

Parts related to LT1513-2CR#TRPBF

Showing 0 results

LT1513-2CR#TRPBF Alternates

Showing results

Image Part Number Model
Part Image LT1513-2IR#PBF Linear Technology

LT1513 - SEPIC Constant- or Programmable-Current/Constant-Voltage Battery Charger; Package: DD PAK; Pins: 7; Temperature Range: -40°C to 85°C

Part Image LT1513-2CR#TR Linear Technology

LT1513 - SEPIC Constant- or Programmable-Current/Constant-Voltage Battery Charger; Package: DD PAK; Pins: 7; Temperature Range: 0°C to 70°C

Part Image LT1513-2CR#TRPBF Linear Technology

LT1513 - SEPIC Constant- or Programmable-Current/Constant-Voltage Battery Charger; Package: DD PAK; Pins: 7; Temperature Range: 0°C to 70°C

Part Image LT1513-2IR#TR Analog Devices Inc

Battery Charge Controller, Current-mode, 5.4A, 580kHz Switching Freq-Max, PSSO7

Part Image LT1513-2CR Analog Devices Inc

Battery Charge Controller, Current-mode, 5.4A, 580kHz Switching Freq-Max, PSSO7

For a full list of alternate parts for LT1513-2CR#TRPBF, check out Findchips.com
