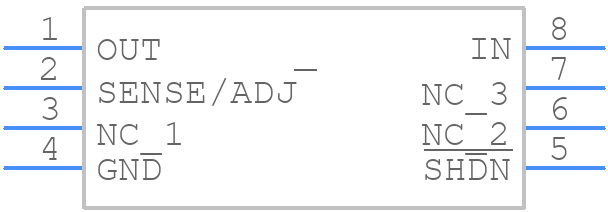

LT1521CMS8-3.3#PBF - Analog Devices

LT1521CMS8-3.3#PBF Details

• Manufacturer Part Number:

  LT1521CMS8-3.3#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  8

• Manufacturer Package Code:

  05-08-1660

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.75 V

• Dropout Voltage1-Nom:

  0.5 V

• Input Voltage Absolute-Max:

  20 V

• Input Voltage-Max:

  20 V

• Input Voltage-Min:

  4.3 V

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Line Regulation-Max:

  0.02%

• Load Regulation-Max:

  0.055%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Output Current1-Max:

  0.3 A

• Output Voltage1-Max:

  3.4 V

• Output Voltage1-Min:

  3.2 V

• Output Voltage1-Nom:

  3.3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP8,.19

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  1.1 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Voltage Tolerance-Max:

  3%

• Width:

  3 mm
