LT1576CS8-5#PBF - Analog Devices

Description: Buck Switching Regulator IC Positive Fixed 5V 1 Output 1.5A 8-SOIC (0.154", 3.90mm Width)

Download LT1576CS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

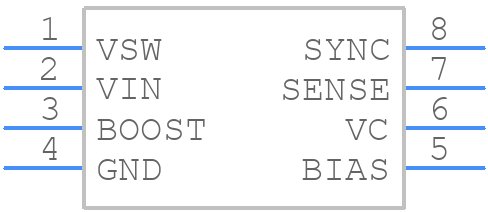

LT1576CS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1576CS8-5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch) (Reference LTC DWG # 05-08-1610)
click to zoom
3D Models
LT1576CS8-5#PBF - Analog Devices - 3D model - Small Outline Packages - S8 Package 8-Lead Plastic Small Outline (Narrow .150 Inch) (Reference LTC DWG # 05-08-1610)
click to zoom

LT1576CS8-5#PBF Details

  • Manufacturer Part Number:

    LT1576CS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    CONSTANT FREQUENCY

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    3.5 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Supply Current-Max (Isup):

    2.2 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    240 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

LT1576CS8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1576CS8-5 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and is properly sized for the output current. A minimum output capacitance of 10uF is recommended.
  • The maximum ambient temperature range for the LT1576CS8-5 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output voltage may drop. It's essential to consider the thermal management of the device in your design.
  • Yes, the LT1576CS8-5 is suitable for high-reliability and automotive applications. It's built with high-reliability materials and has undergone rigorous testing to ensure its performance and reliability in harsh environments. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT1576CS8-5, start by checking the input voltage, output voltage, and output current. Verify that the device is properly powered and that the output capacitor is properly sized. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output. Consult the datasheet and application notes for more troubleshooting guidance.
