LT1631CS#TRPBF - Analog Devices

Description: 30MHz, 10V/μs, Quad Rail-to-Rail Input and Output Precision Op Amps 14-SO , 2.7V ~ 36V , -40°C ~ 85°C

Download LT1631CS#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

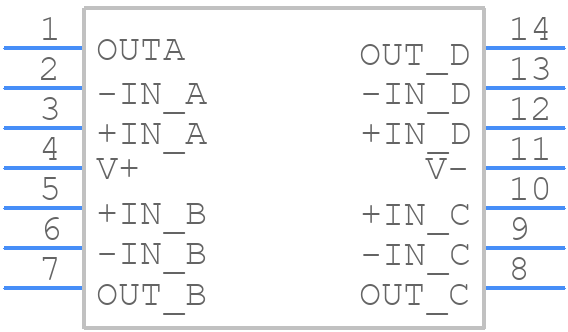

Symbol
LT1631CS#TRPBF - Analog Devices - PCB symbol
click to zoom

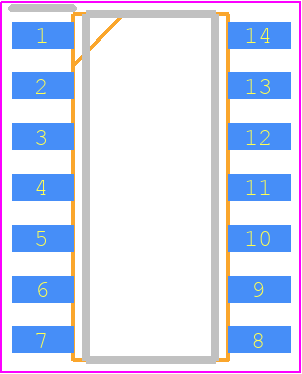

PCB Footprints
LT1631CS#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SOIC_N_2026-1.7
click to zoom

LT1631CS#TRPBF Details

  • Manufacturer Part Number:

    LT1631CS#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1610 (S14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1.2 µA

  • Common-mode Reject Ratio-Min:

    88 dB

  • Common-mode Reject Ratio-Nom:

    104 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1250 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    4.5 V/us

  • Slew Rate-Nom:

    9 V/us

  • Supply Current-Max:

    22.4 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    28000

  • Voltage Gain-Min:

    600000

  • Wideband:

    YES

  • Width:

    3.9 mm

LT1631CS#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1631CS involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and avoid capacitive loads. Also, ensure that the input and output voltages are within the recommended operating range, and the device is operated within its specified temperature range.
  • The maximum power dissipation of the LT1631CS is dependent on the package type and the ambient temperature. For the TRPBF package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the ambient temperature and the device's thermal resistance.
  • The LT1631CS is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • To protect the LT1631CS from overvoltage and overcurrent conditions, use voltage and current limiting circuits, such as zener diodes and current limiting resistors, respectively. Also, ensure that the input and output voltages are within the recommended operating range, and the device is operated within its specified current rating.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1631CS#TRPBF Overview

Use the download button to access the LT1631CS#TRPBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LT163, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
