LT1634ACS8-2.5#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1634ACS8-2.5#PBF - Voltage Reference, Precision Micropower, Shunt - Fixed, LT1634 Series, 2.5V, NSOIC-8

Download LT1634ACS8-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

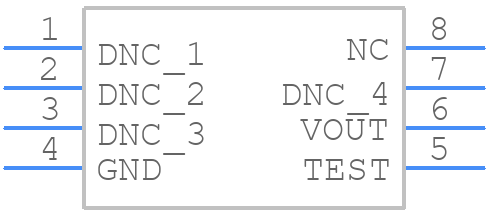

Symbol
LT1634ACS8-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1634ACS8-2.5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC SO
click to zoom
3D Models
LT1634ACS8-2.5#PBF - Analog Devices - 3D model - Small Outline Packages - 8-LEAD PLASTIC SO
click to zoom

LT1634ACS8-2.5#PBF Details

  • Manufacturer Part Number:

    LT1634ACS8-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.503 V

  • Output Voltage-Min:

    2.497 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.875 mm

LT1634ACS8-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1634 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and avoid capacitive loads. Also, ensure that the input and output voltages are within the recommended operating range.
  • The maximum power dissipation of the LT1634 is dependent on the package type and the ambient temperature. For the SO-8 package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
  • While the LT1634 is a voltage reference, it's not recommended to use it as a voltage regulator. The device is designed to provide a stable voltage reference, not to regulate voltage. If you need a voltage regulator, consider using a dedicated voltage regulator IC.
  • The output voltage of the LT1634 is fixed at 2.5V, and it's not adjustable. The device is designed to provide a stable 2.5V reference voltage, and it's not intended to be used as an adjustable voltage source.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1634ACS8-2.5#PBF Overview

Use the download button to access the LT1634ACS8-2.5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT163, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
