LT1634ACS8-4.096#PBF - Analog Devices

Description: IC VREF SHUNT 4.096V 8SOIC

Download LT1634ACS8-4.096#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

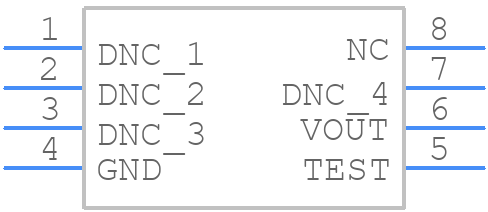

Symbol
LT1634ACS8-4.096#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1634ACS8-4.096#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SO-8-ren3
click to zoom
3D Models
LT1634ACS8-4.096#PBF - Analog Devices - 3D model - Small Outline Packages - SO-8-ren3
click to zoom

LT1634ACS8-4.096#PBF Details

  • Manufacturer Part Number:

    LT1634ACS8-4.096#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    4.10091 V

  • Output Voltage-Min:

    4.09108 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.875 mm

LT1634ACS8-4.096#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1634ACS8-4.096 involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure the accuracy of the 4.096V output voltage, make sure to use a high-accuracy external resistor, keep the device at a stable temperature, and minimize noise and interference on the input and output pins.
  • The LT1634ACS8-4.096 can supply up to 20mA of output current, but it's recommended to limit the output current to 10mA or less to ensure stability and accuracy.
  • The LT1634ACS8-4.096 is rated for operation up to 125°C, but its accuracy and stability may degrade at high temperatures. It's recommended to use a heat sink or thermal management system to keep the device at a stable temperature.
  • To protect the LT1634ACS8-4.096 from overvoltage and reverse voltage, use a voltage clamp or a transient voltage suppressor (TVS) diode on the input pin, and ensure that the output pin is not shorted to a voltage higher than the input voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1634ACS8-4.096#PBF Overview

Use the download button to access the LT1634ACS8-4.096#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT163, or try a keyword search, such as Voltage References
