LT1634BCMS8-1.25 - Analog Devices

Description: V-Ref Precision 1.25V 100mA 8-Pin MSOP

Download LT1634BCMS8-1.25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

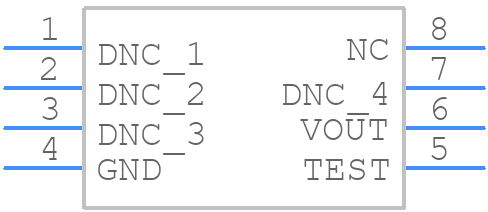

Symbol
LT1634BCMS8-1.25 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1634BCMS8-1.25 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic MSO
click to zoom
3D Models
LT1634BCMS8-1.25 - Analog Devices - 3D model - Small Outline Packages - 8-Lead Plastic MSO
click to zoom

LT1634BCMS8-1.25 Details

  • Manufacturer Part Number:

    LT1634BCMS8-1.25

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    1.25281 V

  • Output Voltage-Min:

    1.24718 V

  • Output Voltage-Nom:

    1.25 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.225%

  • Width:

    3 mm

LT1634BCMS8-1.25 Frequently Asked Questions (FAQs)

  • The recommended output capacitor value is 10uF to 22uF, but it can be adjusted based on the specific application and noise requirements.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a low-ESR output capacitor, and keep the input and output pins as close as possible to the device.
  • The maximum current that can be drawn from the LT1634BCMS8-1.25 is 10mA, but it's recommended to keep the output current below 5mA for optimal performance and stability.
  • The LT1634BCMS8-1.25 has a soft-start feature that prevents output voltage overshoot during power-up. During power-down, the output voltage decays rapidly to prevent any voltage overshoot or ringing.
  • The LT1634BCMS8-1.25 is rated for operation up to 125°C, but its accuracy and stability may degrade at higher temperatures. It's recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1634BCMS8-1.25 Overview

Use the download button to access the LT1634BCMS8-1.25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT163, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
