LT1634BCS8-2.5#PBF - Analog Devices

Description: Linear Technology LT1634BCS8-2.5#PBF, Shunt Voltage Reference, 0.05% 8-Pin, SOIC

Download LT1634BCS8-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

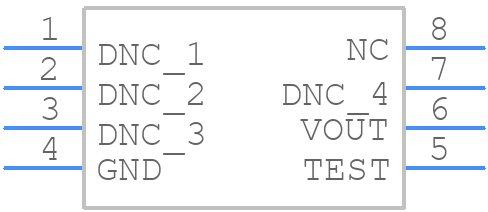

LT1634BCS8-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1634BCS8-2.5#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-8Lead Plastic Small Outline(narrow 0.150 inch)
click to zoom
3D Models
LT1634BCS8-2.5#PBF - Analog Devices - 3D model - Small Outline Packages - S8-8Lead Plastic Small Outline(narrow 0.150 inch)
click to zoom

LT1634BCS8-2.5#PBF Details

  • Manufacturer Part Number:

    LT1634BCS8-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    2.50562 V

  • Output Voltage-Min:

    2.49437 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.875 mm

LT1634BCS8-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1634BCS8-2.5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and avoid capacitive loads. Also, ensure that the device is operated within its recommended operating conditions and that the input voltage is within the specified range.
  • The maximum power dissipation of the LT1634BCS8-2.5 is dependent on the package and the ambient temperature. For the SOIC-8 package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it is recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
  • The LT1634BCS8-2.5 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's performance and consider using a heat sink or a thermally-enhanced package if operation at high temperatures is required.
  • To troubleshoot issues with the LT1634BCS8-2.5, start by verifying the input voltage and the output voltage. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the device is properly compensated and that the output capacitance is within the recommended range.
