LT1634BCS8-4.096#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1634BCS8-4.096#PBF - Voltage Reference, Precision Micropower, Shunt - Fixed, LT1634 Series, 4.096V, NSOIC-8

Download LT1634BCS8-4.096#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

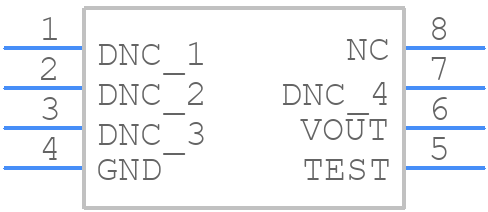

Symbol
LT1634BCS8-4.096#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1634BCS8-4.096#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-LEAD PLASTIC SO
click to zoom
3D Models
LT1634BCS8-4.096#PBF - Analog Devices - 3D model - Small Outline Packages - 8-LEAD PLASTIC SO
click to zoom

LT1634BCS8-4.096#PBF Details

  • Manufacturer Part Number:

    LT1634BCS8-4.096#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Max:

    4.10522 V

  • Output Voltage-Min:

    4.08678 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.875 mm

LT1634BCS8-4.096#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1634BCS8-4.096 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the accuracy of the output voltage, it's essential to use a high-precision external resistor network, keep the device at a stable temperature, and minimize noise and interference on the input and output lines. Additionally, using a low-ESR output capacitor can help to reduce output voltage error.
  • The maximum input voltage that the LT1634BCS8-4.096 can handle is 15V. Exceeding this voltage can cause damage to the device. It's recommended to use a voltage regulator or a voltage limiter to ensure that the input voltage does not exceed the maximum rating.
  • To protect the LT1634BCS8-4.096 from overcurrent and overheating, it's recommended to use a current-limiting resistor in series with the output, add a thermal sensor to monitor the device temperature, and implement a shutdown mechanism to turn off the device in case of an overcurrent or overtemperature condition.
  • Yes, the LT1634BCS8-4.096 is suitable for high-reliability and high-temperature applications. It's manufactured using a high-reliability process and is rated for operation up to 125°C. However, it's essential to follow proper design and layout guidelines to ensure the device operates within its specified limits.
