LT1634BIS8-4.096#PBF - Analog Devices

Description: V-Ref Precision 4.096V 0.015mA 8-Pin SOIC N Tube

Download LT1634BIS8-4.096#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

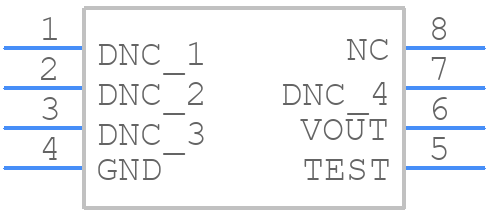

Symbol
LT1634BIS8-4.096#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1634BIS8-4.096#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - SO-8-ren1
click to zoom
3D Models
LT1634BIS8-4.096#PBF - Analog Devices - 3D model - Small Outline Packages - SO-8-ren1
click to zoom

LT1634BIS8-4.096#PBF Details

  • Manufacturer Part Number:

    LT1634BIS8-4.096#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    4.11085 V

  • Output Voltage-Min:

    4.08115 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    25 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    3.875 mm

LT1634BIS8-4.096#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1634BIS8-4.096#PBF involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure the accuracy of the output voltage, it is essential to use a high-accuracy external resistor, keep the device at a stable temperature, and minimize noise and interference. Additionally, the output voltage can be trimmed using the TRIM pin to achieve higher accuracy.
  • The maximum power dissipation of the LT1634BIS8-4.096#PBF is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it is recommended to derate the power dissipation based on the operating temperature and the thermal resistance of the PCB.
  • The LT1634BIS8-4.096#PBF is rated for operation up to 125°C junction temperature. However, the device's accuracy and stability may be affected at high temperatures. It is recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.
  • The LT1634BIS8-4.096#PBF has built-in overcurrent protection, but it is still recommended to add external protection circuitry to prevent damage from overvoltage and overcurrent conditions. This can include adding voltage clamps, current limiters, and fuses to the input and output lines.
