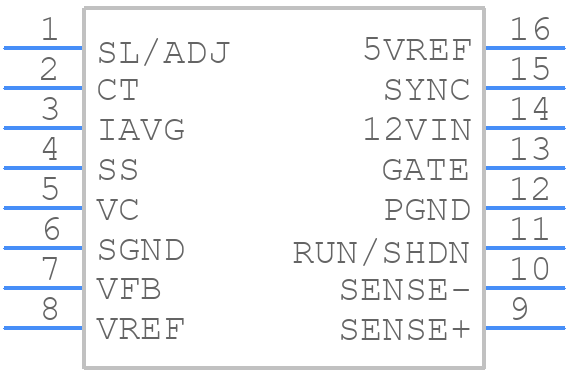

LT1680CSW#TRPBF - Analog Devices

LT1680CSW#TRPBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the LT1680CSW?
  A good PCB layout for the LT1680CSW involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Additionally, it's essential to minimize the loop area of the input and output traces to reduce EMI.
• How do I ensure the LT1680CSW is stable and doesn't oscillate?
  To ensure stability, it's crucial to follow the recommended component values and PCB layout guidelines. Additionally, make sure the input and output capacitors are of high quality and have low ESR. The LT1680CSW is a current-mode converter, so it's essential to ensure the current sense resistor (RSENSE) is properly selected and placed close to the device. Finally, verify that the output voltage is within the recommended range and that the device is not operated in a region where the output voltage is close to the input voltage.
• What is the maximum ambient temperature range for the LT1680CSW?
  The LT1680CSW has an operating junction temperature range of -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system. As a general guideline, the ambient temperature should be kept below 85°C to ensure reliable operation. It's essential to perform thermal analysis and testing to ensure the device operates within its specified temperature range.
• Can I use the LT1680CSW in a high-reliability or automotive application?
  Yes, the LT1680CSW is suitable for high-reliability and automotive applications. It's manufactured using a high-reliability process and has undergone rigorous testing to ensure its performance and reliability. However, it's essential to follow the recommended design guidelines, testing, and validation procedures to ensure the device meets the specific requirements of the application.
• How do I troubleshoot issues with the LT1680CSW, such as output voltage errors or instability?
  To troubleshoot issues with the LT1680CSW, start by verifying the input voltage, output voltage, and current sense resistor values. Check the PCB layout and ensure it follows the recommended guidelines. Use an oscilloscope to measure the output voltage ripple, input voltage, and current sense voltage. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
