LT1683IG#PBF - Analog Devices

Description: Slew Rate Controlled Ultralow Noise Push-Pull DC/DC Controller

Download LT1683IG#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

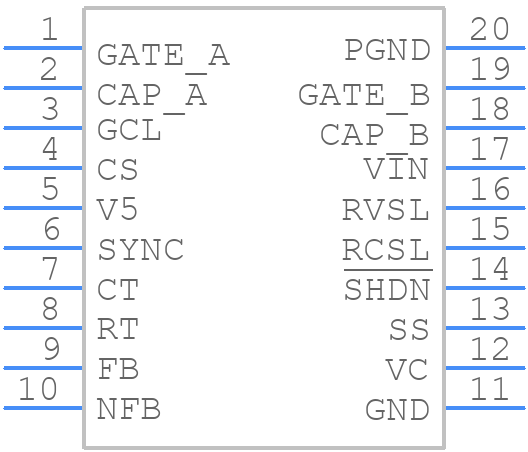

LT1683IG#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1683IG#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT1683IG#PBFaa
click to zoom
3D Models
LT1683IG#PBF - Analog Devices - 3D model - Small Outline Packages - LT1683IG#PBFaa
click to zoom

LT1683IG#PBF Details

  • Manufacturer Part Number:

    LT1683IG#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5.30 MM, LEAD FREE, PLASTIC, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1640 (G20)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    2.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    55 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    250 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

LT1683IG#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1683IG involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor has a low ESR (Equivalent Series Resistance) and is properly sized for the output current. Also, ensure that the input voltage is within the recommended range and the output voltage is set within the adjustable range.
  • The maximum ambient temperature for the LT1683IG is 125°C. However, the device can operate at a higher temperature if the power dissipation is reduced or if the device is mounted on a heat sink.
  • Yes, the LT1683IG is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is recommended to follow proper design and manufacturing guidelines to ensure the highest reliability.
  • To protect the LT1683IG from overvoltage and undervoltage conditions, use a voltage supervisor or a voltage monitor IC to monitor the input voltage and shut down the device if the voltage exceeds the recommended range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1683IG#PBF Overview

Use the download button to access the LT1683IG#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT168, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
