LT1763MPDE-1.5#PBF - Analog Devices

Description: 500mA, Low Noise, LDO Micropower Regulators

Download LT1763MPDE-1.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

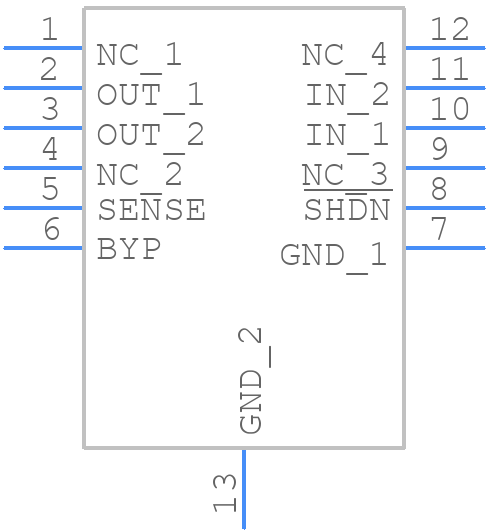

LT1763MPDE-1.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1763MPDE-1.5#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 12-Lead Plastic DFN (4mm × 3mm)_2025-1
click to zoom
3D Models
LT1763MPDE-1.5#PBF - Analog Devices - 3D model - Small Outline No-lead - DE Package 12-Lead Plastic DFN (4mm × 3mm)_2025-1
click to zoom

LT1763MPDE-1.5#PBF Details

  • Manufacturer Part Number:

    LT1763MPDE-1.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 3 MM, 0.75 MM HEIGHT, LEAD FREE, PLASTIC, MO-229WGED, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    20 V

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    1.8 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Line Regulation-Max:

    0.005%

  • Load Regulation-Max:

    0.015%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    1.538 V

  • Output Voltage1-Min:

    1.462 V

  • Output Voltage1-Nom:

    1.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.53%

  • Width:

    3 mm

LT1763MPDE-1.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1763MPDE-1.5 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog ground plane and to keep the power supply traces away from the analog signals.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output pins with ceramic capacitors and to use a low-impedance output capacitor.
  • The maximum ambient temperature range for the LT1763MPDE-1.5 is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's recommended to derate the output current and voltage accordingly.
  • Yes, the LT1763MPDE-1.5 is suitable for high-reliability and automotive applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability and performance. However, it's recommended to consult with Analog Devices' application engineers to ensure that the device meets the specific requirements of your application.
  • To troubleshoot issues with the LT1763MPDE-1.5, start by checking the input and output voltages, as well as the current consumption. Use an oscilloscope to check for any oscillations or noise on the output. Also, ensure that the device is properly decoupled and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes, or contact Analog Devices' technical support for further assistance.
