LT1792ACN8#PBF - Analog Devices

Description: OP Amp Single GP ±20V 8-Pin PDIP N

Download LT1792ACN8#PBF Model

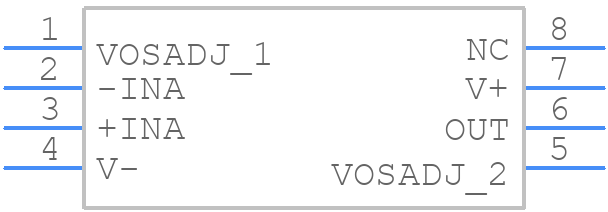

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1792ACN8#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N8 8-Lead PDIP
click to zoom
3D Models
LT1792ACN8#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N8 8-Lead PDIP
click to zoom

LT1792ACN8#PBF Details

  • Manufacturer Part Number:

    LT1792ACN8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1510 (N8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0018 µA

  • Bias Current-Max (IIB) @25C:

    0.008 µA

  • Common-mode Reject Ratio-Min:

    81 dB

  • Common-mode Reject Ratio-Nom:

    104 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    800 µV

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.27 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Slew Rate-Min:

    2.1 V/us

  • Slew Rate-Nom:

    3.1 V/us

  • Supply Current-Max:

    5.4 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4500

  • Voltage Gain-Min:

    900000

  • Wideband:

    NO

  • Width:

    7.62 mm

LT1792ACN8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1792 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and avoid capacitive loads. Also, ensure that the input voltage is within the recommended range and the device is operated within its specified temperature range.
  • The maximum power dissipation of the LT1792 is dependent on the package type and the ambient temperature. For the N8 package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it is recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
  • While the LT1792 can be used as a voltage regulator, it is not recommended due to its limited output current capability and lack of built-in short-circuit protection. It is primarily designed as a high-speed, low-noise op-amp for signal conditioning and amplification applications.
  • To protect the LT1792 from ESD damage, handle the device with anti-static wrist straps, mats, or bags. Ensure that the PCB is designed with ESD protection in mind, including the use of TVS diodes and resistors to limit the voltage and current during an ESD event.
