LT1792CS8#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT1792CS8#PBF - IC, SM, OP AMP, JFET

Download LT1792CS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

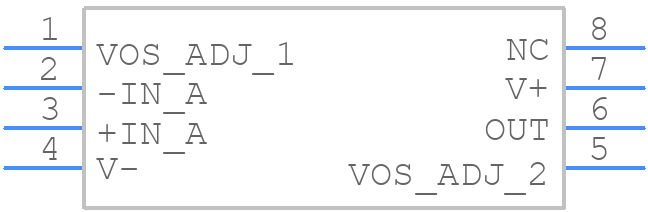

Symbol
LT1792CS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1792CS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LT1792CS8#PBF - Analog Devices - 3D model - Small Outline Packages - S8-ren3
click to zoom

LT1792CS8#PBF Details

  • Manufacturer Part Number:

    LT1792CS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, PLASTIC, SO-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0018 µA

  • Bias Current-Max (IIB) @25C:

    0.008 µA

  • Common-mode Reject Ratio-Min:

    79 dB

  • Common-mode Reject Ratio-Nom:

    99 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    2700 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    2.1 V/us

  • Slew Rate-Nom:

    3.1 V/us

  • Supply Current-Max:

    5.4 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    4500

  • Voltage Gain-Min:

    800000

  • Wideband:

    NO

  • Width:

    3.9 mm

LT1792CS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1792CS8#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a Kelvin connection for the output voltage sense pins to reduce noise.
  • To ensure stability, make sure to follow the recommended compensation network values and layout guidelines in the datasheet. Additionally, check that the output capacitor is sufficient to maintain stability, and consider adding a small series resistor to the output to dampen oscillations.
  • The maximum power dissipation of the LT1792CS8#PBF is dependent on the package type and thermal resistance. For the SO-8 package, the maximum power dissipation is approximately 1.4W. To calculate power dissipation, use the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
  • The LT1792CS8#PBF is rated for operation up to 125°C, but the maximum junction temperature (Tj) should not exceed 150°C. At higher temperatures, the device's performance and reliability may degrade. Be sure to follow the recommended thermal derating guidelines in the datasheet to ensure safe operation.
  • To protect the LT1792CS8#PBF from input voltage transients and surges, consider adding a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. Additionally, use a input capacitor with a high voltage rating to absorb voltage spikes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1792CS8#PBF Overview

Use the download button to access the LT1792CS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT179, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
