LT1795CFE#PBF - Analog Devices

Description: Dual 500mA/50MHz Current Feedback Line Driver Amplifier ,15mA , 40°C to 85°C ,18V

Download LT1795CFE#PBF Model

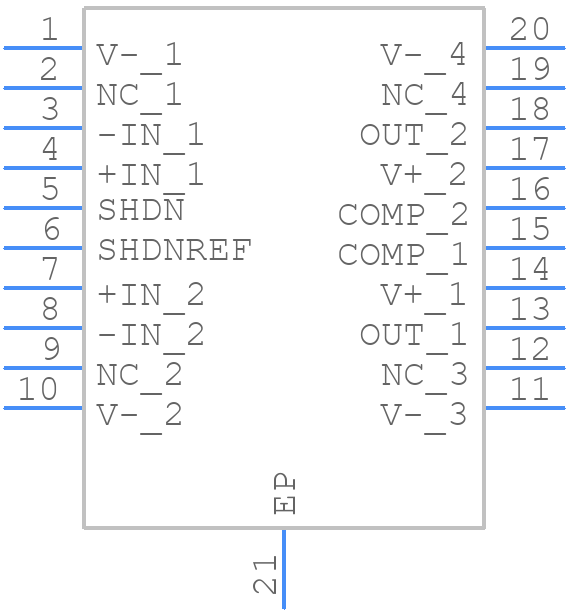

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1795CFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 20-Lead Plastic TSSOP (4.4mm)_2026-1.18
click to zoom

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT1795CFE#PBF Overview

Use the download button to access the LT1795CFE#PBF schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LT179, or try a keyword search, such as Operational Amplifiers
