LT1804IDD#PBF - Analog Devices

Description: High Speed Operational Amplifiers Dual, 85MHz, 100V/us R-to-R In/Out OA

Download LT1804IDD#PBF Model

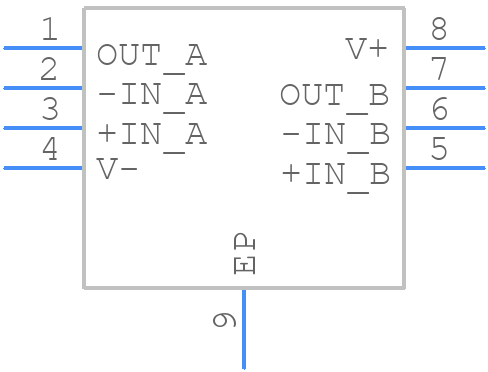

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT1804IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package2
click to zoom
3D Models
LT1804IDD#PBF - Analog Devices  - 3D model - Small Outline No-lead - DD Package2
click to zoom

LT1804IDD#PBF Details

  • Manufacturer Part Number:

    LT1804IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    6.5 µA

  • Bias Current-Max (IIB) @25C:

    0.75 µA

  • Common-mode Reject Ratio-Min:

    73 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Nom:

    65 V/us

  • Supply Current-Max:

    9 mA

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    75000

  • Voltage Gain-Min:

    12000

  • Wideband:

    YES

  • Width:

    3 mm

LT1804IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1804IDD#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 1uF, and avoid capacitive loads. Also, ensure that the device is operated within its recommended operating conditions and that the input and output voltages are within the specified ranges.
  • The maximum power dissipation of the LT1804IDD#PBF is dependent on the ambient temperature and the thermal resistance of the package. For the DFN package, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature. However, it is recommended to derate the power dissipation based on the operating temperature and the thermal resistance of the PCB.
  • The LT1804IDD#PBF is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the power dissipation and ensure proper thermal management to prevent overheating.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any potential issues, ensure that the input and output capacitors are properly sized and placed, and verify that the device is operated within its recommended operating conditions. Also, check for any noise or interference on the input or output lines.
