LT1941EFEPBF - Analog Devices

Description: Wide Input Range: 3.5V to 25V n Three Switching Regulators with Internal Power Switches: 3A Step-Down, 2A Step-Down, 1.5A Inverting/Boost n Antiphase Switching Reduces Ripple n Independent Shutdown/Soft-Start Pins n Independent Power Good Indicators Ease Supply Sequencing n Input Voltage Power Good Indicators Monitor Input Supply n Uses Small Inductors and Ceramic Capacitors n Constant 1.1MHz Switching Frequency n Thermally Enhanced 28-Lead TSSOP Package

Download LT1941EFEPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

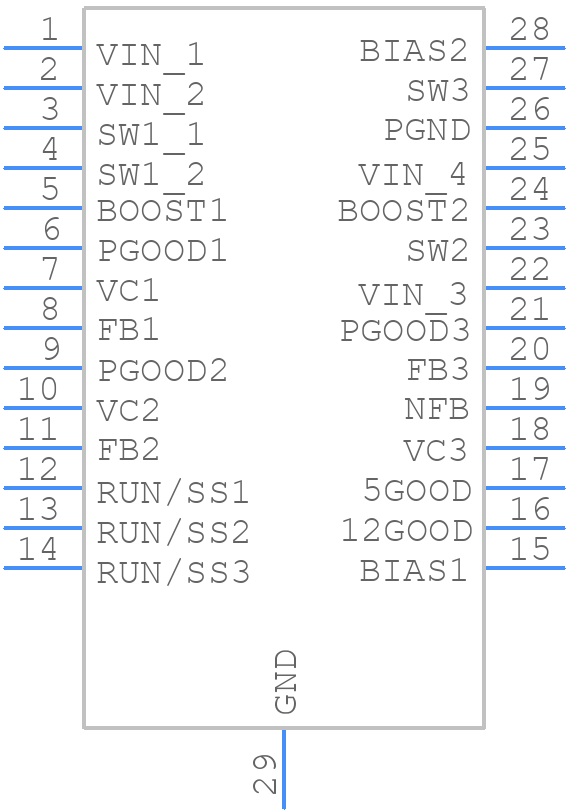

LT1941EFEPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1941EFEPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)..
click to zoom
3D Models
LT1941EFEPBF - Analog Devices - 3D model - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)..
click to zoom

LT1941EFEPBF Details

  • Manufacturer Part Number:

    LT1941EFEPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT1941EFEPBF Overview

Use the download button to access the LT1941EFEPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT194, or try a keyword search, such as Switching Regulator or Controllers
