LT1946EMS8#PBF - Analog Devices

Description: IC REG BOOST ADJ 1.5A 8MSOP

Download LT1946EMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

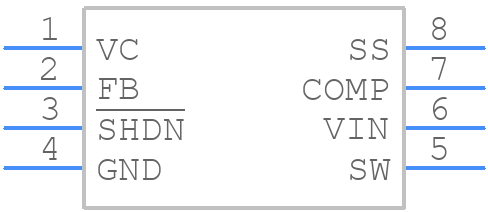

LT1946EMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1946EMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 8-Lead Plastic MSOP
click to zoom
3D Models
LT1946EMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 8-Lead Plastic MSOP
click to zoom

LT1946EMS8#PBF Details

  • Manufacturer Part Number:

    LT1946EMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2.6 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    3.1 A

  • Output Voltage-Max:

    34 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1500 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT1946EMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1946EMS8 involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the feedback resistors are properly selected. Also, avoid using long feedback traces and minimize the distance between the IC and the output capacitor.
  • The maximum ambient temperature range for the LT1946EMS8 is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to consider thermal management and heat dissipation in the design.
  • Yes, the LT1946EMS8 is suitable for high-reliability and aerospace applications. However, it's essential to follow the recommended design and manufacturing guidelines, and to consult with Analog Devices' application engineers for specific guidance.
  • To troubleshoot issues with the LT1946EMS8, start by verifying the input voltage, output voltage, and feedback resistors. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to measure the output voltage and current, and consult the datasheet and application notes for guidance.
