LT1994MPDD#PBF - Analog Devices

Description: IC OPAMP DIFF 1 CIRCUIT 8DFN

Download LT1994MPDD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

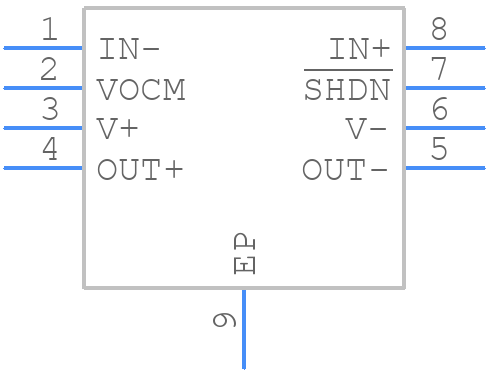

Symbol
LT1994MPDD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1994MPDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD PACKAGE
click to zoom
3D Models
LT1994MPDD#PBF - Analog Devices - 3D model - Small Outline No-lead - DD PACKAGE
click to zoom

LT1994MPDD#PBF Details

  • Manufacturer Part Number:

    LT1994MPDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LED FREE, PLASTIC, MO-229-WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    3 µA

  • Bias Current-Max (IIB) @25C:

    -45 µA

  • Common-mode Reject Ratio-Min:

    55 dB

  • Common-mode Reject Ratio-Nom:

    85 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6.3 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    50 V/us

  • Slew Rate-Nom:

    65 V/us

  • Supply Current-Max:

    21.5 mA

  • Supply Voltage Limit-Max:

    6.3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    70000

  • Wideband:

    NO

  • Width:

    3 mm

LT1994MPDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1994 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability in high-gain configurations, it's essential to follow proper PCB layout guidelines, use a low-ESR output capacitor, and add a compensation capacitor (e.g., 10pF to 100pF) between the output and the inverting input. Additionally, consider adding a small resistor (e.g., 10Ω to 100Ω) in series with the output to improve stability.
  • The maximum power dissipation of the LT1994 is dependent on the package type and ambient temperature. For the MPDD package, the maximum power dissipation is approximately 1.4W at 25°C. To calculate power dissipation, use the formula: Pd = (VIN - VOUT) x IOUT + VIN x IQ, where VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, and IQ is the quiescent current.
  • Yes, the LT1994 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the input signal. A resistor in series with the input (e.g., 1kΩ to 10kΩ) can help improve input impedance. Additionally, consider adding a small capacitor (e.g., 10pF to 100pF) between the output and the inverting input to improve stability.
  • To protect the LT1994 from overvoltage and overcurrent conditions, consider adding a voltage clamp or a transient voltage suppressor (TVS) diode at the input. For overcurrent protection, add a current-limiting resistor in series with the output or use a current-sensing resistor with a comparator to detect overcurrent conditions.
