LT1997HDF-2#TRPBF - Analog Devices

Description: General Purpose Amplifier 1 Circuit Rail-to-Rail 14-DFN (4x4) , 20 µV , 350µA , -40°C ~ 125°C

Download LT1997HDF-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

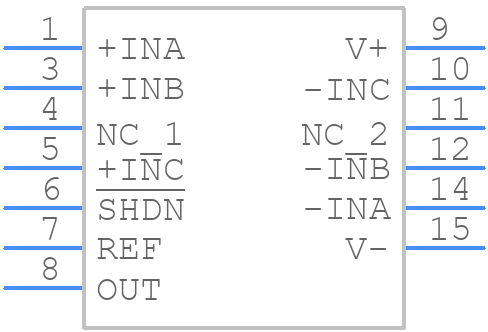

Symbol
LT1997HDF-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1997HDF-2#TRPBF - Analog Devices PCB footprint - Other - Other - DF Package 14(12)-Lead Plastic DFN (4mm × 4mm)_2025-5
click to zoom
3D Models
LT1997HDF-2#TRPBF - Analog Devices - 3D model - Other - DF Package 14(12)-Lead Plastic DFN (4mm × 4mm)_2025-5
click to zoom

LT1997HDF-2#TRPBF Details

  • Manufacturer Part Number:

    LT1997HDF-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14/12

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1963

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-06-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.015 µA

  • Bias Current-Max (IIB) @25C:

    0.005 µA

  • Common-mode Reject Ratio-Min:

    101 dB

  • Common-mode Reject Ratio-Nom:

    118 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    4 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -30 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    YES

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.45 V/us

  • Slew Rate-Nom:

    0.75 V/us

  • Supply Current-Max:

    0.004 mA

  • Supply Voltage Limit-Max:

    30 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    4 mm

LT1997HDF-2#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1997HDF-2#TRPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a low-ESR output capacitor, and keep the input and output impedance low. Additionally, avoid capacitive loading on the output and ensure that the device is operated within its recommended operating conditions.
  • The maximum power dissipation of the LT1997HDF-2#TRPBF is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated for higher ambient temperatures.
  • The LT1997HDF-2#TRPBF is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to consult the datasheet and application notes for guidance on using the device in high-temperature environments.
  • To protect the LT1997HDF-2#TRPBF from overvoltage and overcurrent conditions, use voltage and current limiting circuits, such as zener diodes and current-limiting resistors. Additionally, consider using overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the device.
