LT1997IDF-2#PBF - Analog Devices

Description: Precision, Wide Voltage Range, Gain Selectable Funnel Amplifier

Download LT1997IDF-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

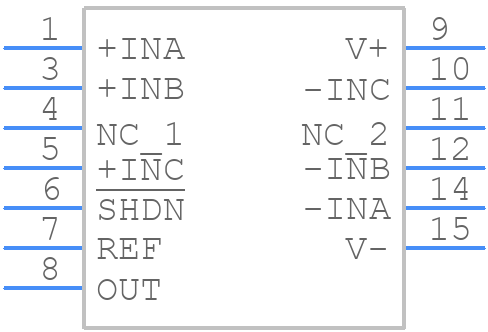

LT1997IDF-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1997IDF-2#PBF - Analog Devices PCB footprint - Other - Other - LT1997IDF-2#PBF-6
click to zoom
3D Models
LT1997IDF-2#PBF - Analog Devices - 3D model - Other - LT1997IDF-2#PBF-6
click to zoom

LT1997IDF-2#PBF Details

  • Manufacturer Part Number:

    LT1997IDF-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14/12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1963

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-06-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.015 µA

  • Bias Current-Max (IIB) @25C:

    0.005 µA

  • Common-mode Reject Ratio-Min:

    101 dB

  • Common-mode Reject Ratio-Nom:

    118 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    S-PBCC-N12

  • Length:

    4 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -30 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    YES

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.45 V/us

  • Slew Rate-Nom:

    0.75 V/us

  • Supply Current-Max:

    0.004 mA

  • Supply Voltage Limit-Max:

    60 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Wideband:

    NO

  • Width:

    4 mm
