LT1997IDF-2#TRPBF - Analog Devices

Description: Precision, Wide Voltage Range, Gain Selectable Funnel Amplifier

Download LT1997IDF-2#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

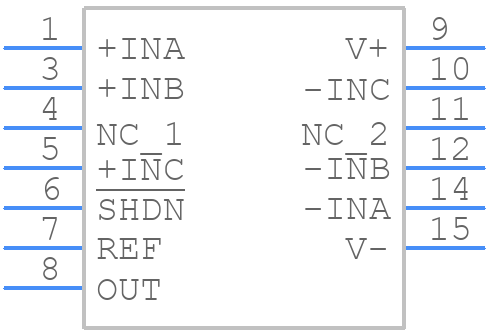

Symbol
LT1997IDF-2#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT1997IDF-2#TRPBF - Analog Devices PCB footprint - Other - Other - LT1997IDF-2#TRPBF-5
click to zoom
3D Models
LT1997IDF-2#TRPBF - Analog Devices - 3D model - Other - LT1997IDF-2#TRPBF-5
click to zoom

LT1997IDF-2#TRPBF Details

  • Manufacturer Part Number:

    LT1997IDF-2#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14/12

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1963

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-06-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Average Bias Current-Max (IIB):

    0.015 µA

  • Bias Current-Max (IIB) @25C:

    0.005 µA

  • Common-mode Reject Ratio-Min:

    101 dB

  • Common-mode Reject Ratio-Nom:

    118 dB

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    4 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -30 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    YES

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.45 V/us

  • Slew Rate-Nom:

    0.75 V/us

  • Supply Current-Max:

    0.004 mA

  • Supply Voltage Limit-Max:

    30 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    4 mm

LT1997IDF-2#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT1997 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network, use a minimum output capacitance of 10uF, and keep the input and output resistors within the recommended range. Also, avoid using long input traces and ensure that the device is properly decoupled.
  • The maximum power dissipation of the LT1997 is dependent on the package and the ambient temperature. For the IDF package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it is recommended to derate the power dissipation based on the ambient temperature and the thermal resistance of the package.
  • The LT1997 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the power dissipation and ensure proper heat sinking to maintain a safe junction temperature.
  • To troubleshoot oscillations or instability issues, check the PCB layout for any signs of resonance or coupling, ensure that the input and output capacitors are properly selected, and verify that the compensation network is correctly implemented. Also, check for any signs of overheating or excessive power dissipation.
