LT3010EMS8EPBF - Analog Devices

Description: Wide Input Voltage Range: 3V to 80V n Low Quiescent Current: 30µA n Low Dropout Voltage: 300mV n Output Current: 50mA n Thermally Enhanced 8-Lead MSOP Package n No Protection Diodes Needed n Fixed Output Voltage: 5V (LT3010-5) n Adjustable Output from 1.275V to 60V (LT3010) n 1µA Quiescent Current in Shutdown n Stable with 1µF Output Capacitor n Stable with Aluminum, Tantalum or Ceramic Capacitors n Reverse-Battery Protection n No Reverse Current Flow from Output n Thermal Limiting n AEC-Q100

Download LT3010EMS8EPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

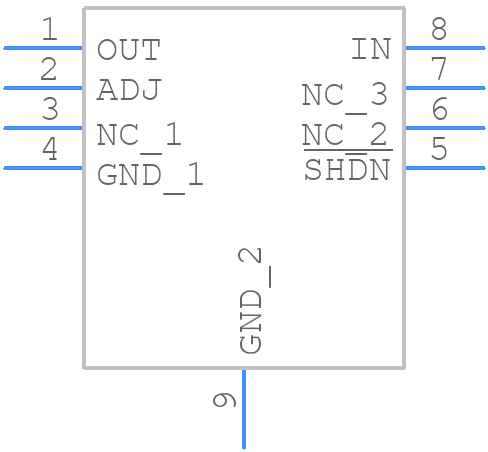

LT3010EMS8EPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3010EMS8EPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1662 Rev K)..
click to zoom
3D Models
LT3010EMS8EPBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1662 Rev K)..
click to zoom

LT3010EMS8EPBF Details

  • Manufacturer Part Number:

    LT3010EMS8EPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT3010EMS8EPBF Overview

Use the download button to access the LT3010EMS8EPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT301, or try a keyword search, such as Linear Regulator ICs
