LT3010HMS8E - Analog Devices

Description: LDO Regulator Pos 1.275V to 60V 0.05A Automotive 8-Pin MSOP EP

Download LT3010HMS8E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

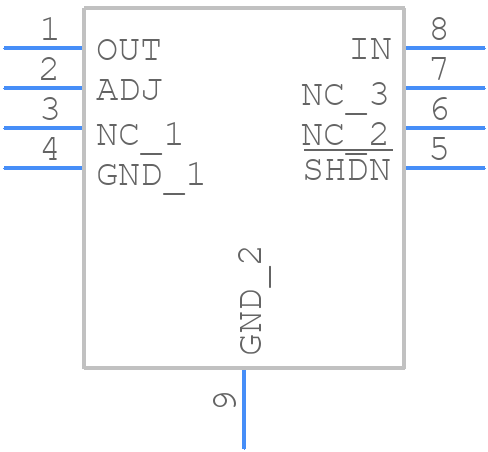

LT3010HMS8E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3010HMS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom
3D Models
LT3010HMS8E - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom

LT3010HMS8E Details

  • Manufacturer Part Number:

    LT3010HMS8E

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.6 V

  • Dropout Voltage1-Nom:

    0.3 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Line Regulation-Max (%/V):

    0.013

  • Load Regulation-Max(%):

    3.53%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    140 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.2 A

  • Output Voltage1-Max:

    60 V

  • Output Voltage1-Min:

    1.275 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3010HMS8E Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device on a solid copper plane, using thermal vias to connect the plane to the device's thermal pad, and keeping the plane as close to the device as possible. Additionally, it's recommended to use a 4-layer board with a solid ground plane and to avoid routing high-current traces near the device.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the output capacitor is properly sized and has a low ESR. Additionally, it's recommended to add a small capacitor (e.g., 10nF) between the VOUT and GND pins to improve stability.
  • While the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 13.5V to ensure reliable operation and to prevent damage to the device.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet. Additionally, it's recommended to use a low-ESR output capacitor and to add a small ceramic capacitor (e.g., 100nF) in parallel with the output capacitor to reduce high-frequency noise.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed as close to the device's VIN pin as possible.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3010HMS8E Overview

Use the download button to access the LT3010HMS8E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT301, or try a keyword search, such as Linear Regulator ICs
