LT3010MPMS8E-5 - Analog Devices

Description: LDO Regulator Pos 5V 0.05A Automotive 8-Pin MSOP EP Tube

Download LT3010MPMS8E-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

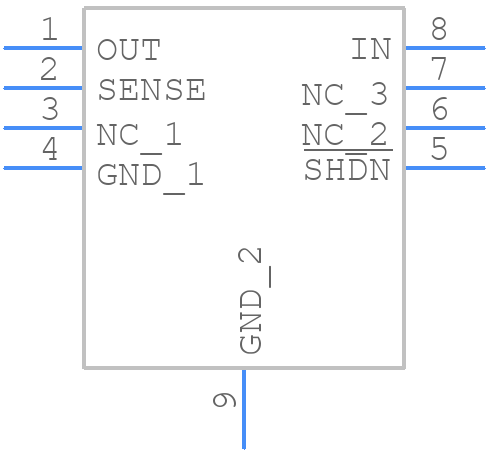

LT3010MPMS8E-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3010MPMS8E-5 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom
3D Models
LT3010MPMS8E-5 - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP,
click to zoom

LT3010MPMS8E-5 Details

  • Manufacturer Part Number:

    LT3010MPMS8E-5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.55 V

  • Input Voltage Absolute-Max:

    80 V

  • Input Voltage-Max:

    80 V

  • Input Voltage-Min:

    3 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Line Regulation-Max:

    0.015%

  • Load Regulation-Max:

    0.09%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -55 °C

  • Output Current1-Max:

    0.05 A

  • Output Voltage1-Max:

    5.15 V

  • Output Voltage1-Min:

    4.85 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Voltage Tolerance-Max:

    3%

  • Width:

    3 mm

LT3010MPMS8E-5 Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3010MPMS8E-5 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network and component values, and keep the output capacitor ESR within the recommended range. Also, avoid using capacitors with high ESL and ESR, and keep the input and output voltage rails well-regulated.
  • The maximum output current capability of the LT3010MPMS8E-5 is 1.5A, but it can be limited by the thermal performance of the device and the PCB. Make sure to follow the recommended thermal design and layout guidelines to ensure reliable operation.
  • The LT3010MPMS8E-5 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Make sure to follow the recommended thermal design and layout guidelines, and consider using thermal management techniques such as heat sinks or thermal interfaces to ensure reliable operation.
  • To troubleshoot issues with the LT3010MPMS8E-5, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the compensation network is correct. Use an oscilloscope to check for oscillations or noise, and consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3010MPMS8E-5 Overview

Use the download button to access the LT3010MPMS8E-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT301, or try a keyword search, such as Linear Regulator ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
