LT3013BEDE#TRPBF - Analog Devices

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 250mA 12-DFN (4x3) ,80V ,1.24V ,120 µA ,-40°C ~ 125°C

Download LT3013BEDE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

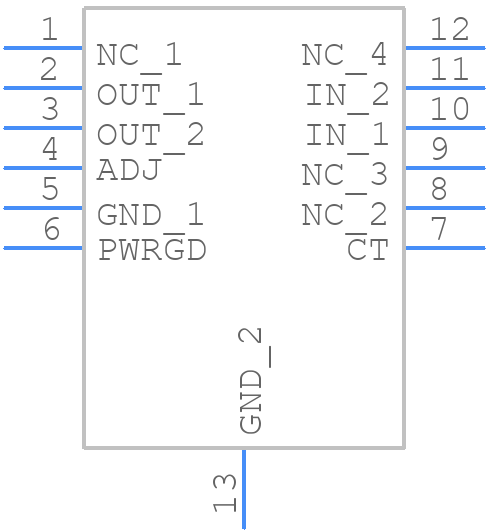

LT3013BEDE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3013BEDE#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DE Package 12-Lead Plastic DFN (4mm × 3mm)_2025-1
click to zoom
3D Models
LT3013BEDE#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DE Package 12-Lead Plastic DFN (4mm × 3mm)_2025-1
click to zoom

LT3013BEDE#TRPBF Details

  • Manufacturer Part Number:

    LT3013BEDE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 3 MM, LEAD FREE, PLASTIC, M0-229, DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1695

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.62 V

  • Dropout Voltage1-Nom:

    0.4 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Line Regulation-Max (%/V):

    0.005

  • Load Regulation-Max(%):

    2%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.25 A

  • Output Voltage1-Max:

    60 V

  • Output Voltage1-Min:

    1.24 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3013BEDE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3013BEDE#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended compensation network and output capacitor values, and keep the feedback resistors close to the device. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, consider adding a small resistor in series with the output capacitor to dampen oscillations.
  • The LT3013BEDE#TRPBF is rated for operation up to 125°C ambient temperature, but it's recommended to derate the output current and voltage as the temperature increases to ensure reliable operation. Consult the datasheet for thermal derating curves.
  • Yes, the LT3013BEDE#TRPBF is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured with a high level of quality and reliability. However, it's essential to follow proper design and manufacturing practices to ensure the device operates within its specifications.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to measure the output voltage ripple, noise, and transient response. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
